Visual approval is essential for overall appearance, but it cannot by itself show whether a press has returned to a repeatable color condition. A planned color bar and a controlled spectrophotometer method turn selected patches into comparable process evidence.
There is no universal perfect color bar or tolerance for every machine, ink, substrate and customer. The control strip, measurement condition and acceptance rules should be designed around the actual workflow, approved reference and packaging requirements.
Decision matrix
| Control element | Record | Purpose |
|---|---|---|
| Job condition | Machine, ink set, substrate lot, mode and profile | Makes measurements comparable |
| Color bar | Patch set, order, size, location and file revision | Samples the intended control variables |
| Instrument | Model, geometry, aperture, mode and calibration state | Controls measurement-system variation |
| Reference | Approved target data or signed production sample | Defines what the run is compared with |
| Trend result | Patch values, variation, corrections and disposition | Supports release and root-cause review |
Define the decision before designing the bar
Decide whether the goal is startup matching, within-run stability, gray balance, spot-color control, substrate comparison or profile verification. Include only patches that can support that decision and can be measured reliably in the available trim or waste area.
X-Rite guidance notes that color-bar design depends on press and control needs. A bar copied from another workflow may omit critical colors or use patches too small for the instrument aperture. Keep a revision-controlled source file and prevent scaling or color conversion during layout.
Lock the measurement condition
Record instrument model, measurement geometry, illuminant/observer settings where applicable, aperture, backing, measurement mode and calibration procedure. Use the same orientation and backing for translucent or textured papers. Keep the instrument window clean and calibrate as specified by its manufacturer.
Do not compare values collected under incompatible conditions as if they were one trend. If two plants use different instruments, run an approved inter-instrument comparison and document the expected agreement rather than silently merging data.
Measure a traceable production sample

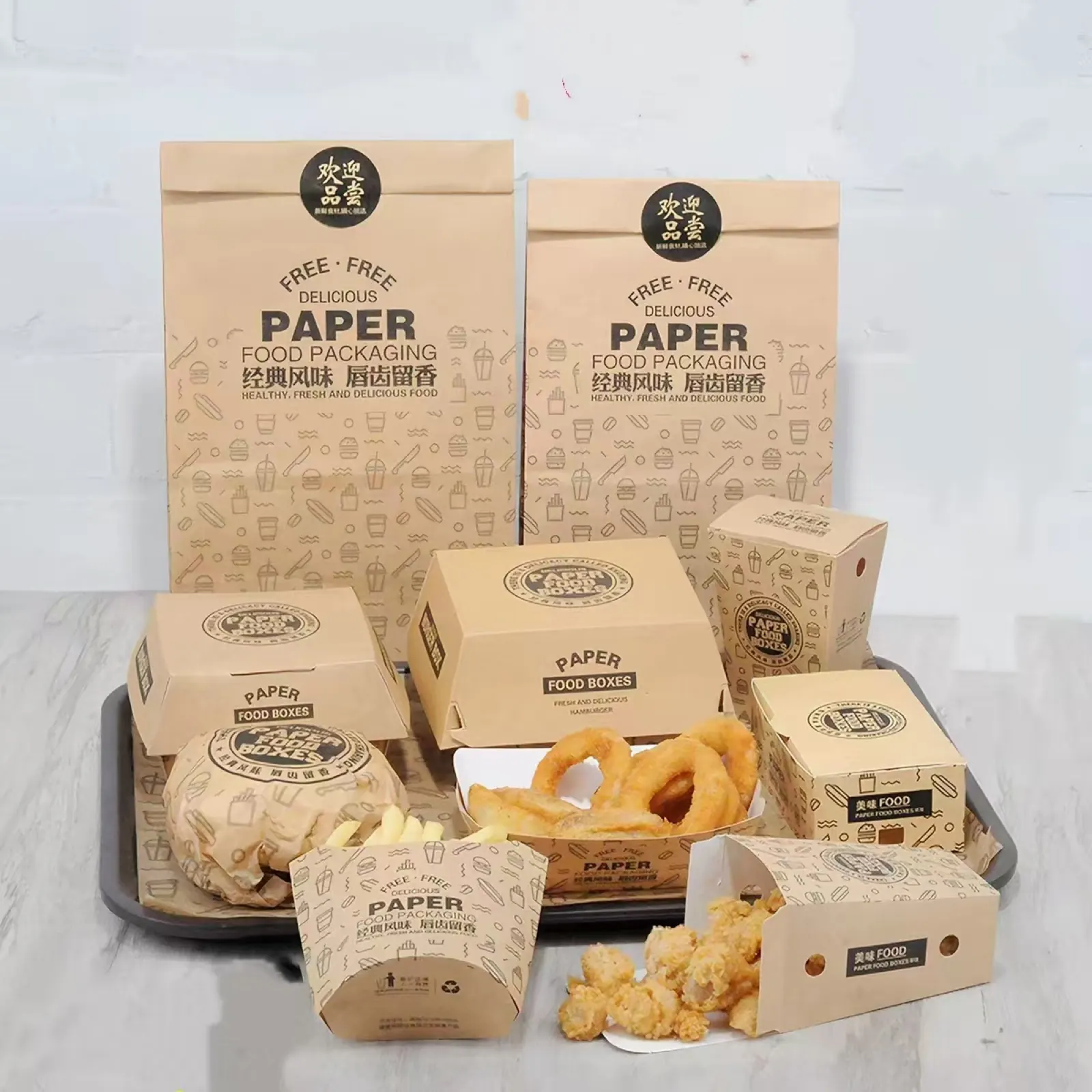

Identify the machine, date, operator, file revision, RIP mode, ICC profile, ink batch, substrate supplier and lot. Allow the printed result to reach the defined measurement condition before comparing it. For food-packaging work, maintain required controls for ink use and product handling independently of color measurement.
Measure the same patch locations in the same order. Repeat questionable readings and inspect for scratches, gloss variation, fibers or print defects that make a patch unrepresentative. Keep the physical sample with its job record when practical.
Interpret trends before making corrections
A single difference does not identify the cause. Review whether changes affect all colors, one channel, neutrals, one side of the sheet or one material lot. Check nozzle condition, ink supply, curing, head alignment, substrate and environmental records before rebuilding a profile.
Make one controlled correction at a time and remeasure. Do not use profile editing to compensate for a mechanical or ink-delivery fault. The linked substrate-change guide helps decide when a material change requires verification or a new characterization.
Create a release and escalation record
Define who can approve the reference, what patches are mandatory and how out-of-control results are segregated. Use customer or internal tolerances that are explicitly agreed for the product; this article does not impose a generic Delta E limit.
For a HANNAI discussion, send the machine configuration, ink and substrate details, RIP/profile information, color-bar file, instrument settings and measurement export. That evidence is far more useful than an uncalibrated phone photo alone.
Technical references
- X-Rite eXact spectrophotometer information — general component guidance; the installed machine documentation remains controlling.
- X-Rite color bar design guide — general component guidance; the installed machine documentation remains controlling.
Related machine and guide
Review the paper cup digital printing machine for machine context, then use the ICC profile and substrate change guide for the adjacent check. Browse all Buyer Guides when building a wider project checklist.
Frequently asked questions
Can one color bar be used for every substrate?
Not automatically. Patch choice, size, placement and measurement behavior must suit the workflow and material.
Is a phone photo suitable for numerical color approval?
No. Use a controlled visual assessment and a calibrated instrument method for traceable measurements.
Does an out-of-tolerance patch mean the ICC profile is wrong?
Not necessarily. Check machine, ink, nozzle, curing, substrate and measurement conditions first.
What must be saved with the result?
Save job conditions, bar revision, instrument settings, calibration state, values, reference and release decision.
