The solid-state relay, heater circuit and temperature-controller output is a small part of a larger processing sequence, but it can influence a heater that stays cold, heats continuously, cycles erratically or warms more slowly than its peer zone. A reliable diagnosis should begin with repeatable line records rather than a replacement guess. This guide gives maintenance teams a structured way to isolate the behavior while preserving the delivered line references.
A practical paper cup machine solid state relay inspection review should connect the visible symptom with the command, physical response and finished output. Final limits, parts and adjustments remain configuration-specific; use the project-issued electrical drawing, heater data, controller manual and qualified electrical test instruction instead of applying a universal value.
Capture the first records at the line
Log heater zone, controller channel, SSR input and load terminals, protective device and heater nameplate. Mark when the concern appears during startup demand, steady-state cycling, alarm behavior and output-off state. Include the operator observation, line state, stock or job identity and the last known acceptable processing period. This prevents several different faults from being grouped under one general alarm or quality description.
Keep samples or videos in sequence and label the line position, direction and time. A pattern tied to one station, one direction, one speed transition or one stock lot is more useful than a mixed collection of rejected output. Review the relevant context in the paper cup line temperature-control guide before changing a setting.
Read command and load records together
| Observed behavior | Records to collect | Diagnostic direction |
|---|---|---|
| Controller requests heat but zone remains cold | Output indicator, SSR input, load voltage and measured current | Control path, open load or protective device |
| Zone heats with command off | Controller output state and voltage across the switched circuit | Shorted SSR, wiring error or bypassed contact |
| Temperature oscillates widely | Trend of setpoint, process value, output and line cycle | Sensor contact, tuning, load switching or airflow |
| SSR heat sink is discolored | Cabinet temperature, mounting behavior and terminal inspection | Cooling loss, loose connection or overload |
| Fuse opens repeatedly | Heater resistance, insulation test by qualified staff and circuit identity | Ground fault, short circuit or incorrect protection |
Control hazardous energy and preserve references
Apply the site lockout and isolation instruction for electrical, pneumatic, vacuum, thermal, gravity and stored mechanical energy that applies to this equipment. Verify the zero-energy state before guards, terminals, tubing, tooling or drive components are accessed. Hot surfaces and charged electrical parts may remain hazardous after the line stops.
Photograph connectors, tube routing, witness marks, adjustment positions, wiring labels and device orientation before disassembly. Qualified personnel should perform live electrical or pressure checks only when the specified diagnostic instruction specifically requires them and appropriate controls are in place.
Inspect the device in its complete load path

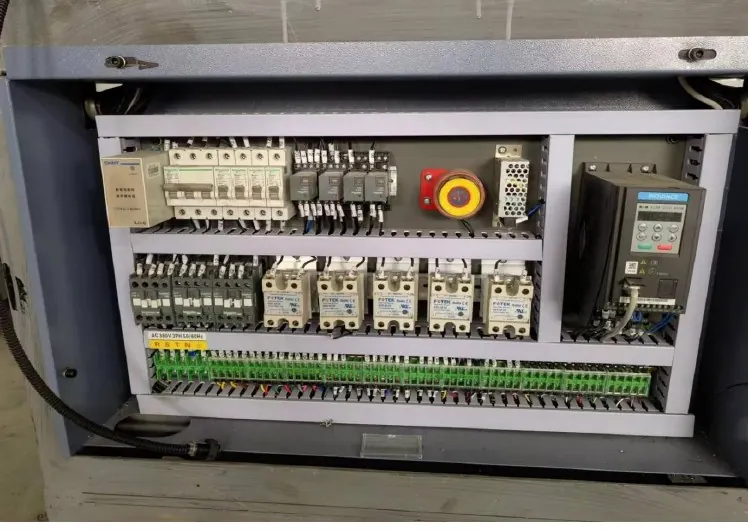

Follow the complete zone from sensor contact to controller output, SSR input, protective device, heater and return conductor. An illuminated SSR indicator does not prove that load current is flowing, and a hot zone does not prove correct sensing.
Clean only by the written method and preserve deposits, wear bands, damaged parts or filter debris when they may explain the event. Replacement parts must match the project-issued identification and service requirements. A visually similar device can have different electrical, pneumatic, thermal, dimensional or stock characteristics.
Compare command, response and finished output
Place the command records beside the physical response: controller output, valve or drive state, sensor transition, pressure or temperature behavior, motion and final article. The sequence shows whether the device failed to receive a command, received it but did not respond, or responded correctly while another process variable created the defect.
Use calibrated or verified instruments appropriate to the project-issued instruction. Log measurement location, instrument resolution, line state and repeated results. Avoid converting a single observation into a tolerance; acceptance criteria must come from specified drawings, manuals, stock data or an agreed known-good baseline.
Rule out interacting line and stock causes
Review upstream preparation and downstream handling before closing the diagnosis. Stock identity, contamination, alignment, lubrication, air or electrical supply, timing, load and recent maintenance can change how the device behaves. The electrical terminal heating inspection guide provides a related system review that can prevent a local repair from masking the original source.
Change one controlled variable at a time and log the before-and-after finding. If several adjustments are made together, a short improvement cannot be attributed to one cause, and the fault may return when speed, temperature, roll diameter or processing demand changes.
Choose corrective work from written records
Classify the finding as contamination, connection, wear, misalignment, supply, control, stock or configuration. Then match the corrective action to the device documentation and the line supplier’s guidance. Do not bypass an interlock, increase a setpoint beyond its specified range or modify a safety-related circuit to keep processing running.
Where the records is incomplete, preserve the line state and send a compact records pack for review. It should contain line and device identity, annotated photos, a sequence video, readings with locations, alarms, stock or job data, recent service history and representative good and bad output.
Verify the repair in stages
Before power or pressure is restored, establish tools are removed, connections are secure, guards are reinstated and the work area is clear. Use the written manual, jog or slow-cycle review first, then progress through small controlled processing stages while watching the original symptom and any secondary effect.
After an specified repair, trend process value and switching command through warm-up and stable processing, establish current is consistent with the written load, and inspect the first formed cups. Do not release the line based only on one acceptable cycle. Document the parts or configuration values changed, final observations, retained samples and the person authorized to return the equipment to processing.
Prevent recurrence with a traceable maintenance log
Add the confirmed inspection point to the maintenance plan with an objective method and a reference source. Trend the behavior by time, cycles or processing demand as appropriate, but do not invent a replacement interval. Device behavior, environment, stock and line loading should determine the review frequency.
Link the maintenance log to alarms, processing samples and spare-part identity. This makes future troubleshooting faster and helps purchasing teams order the correct configuration instead of a visually similar substitute.
Frequently asked questions
Can an SSR fail in the on state?
Yes. Some failure modes leave the load energized, so isolation and verified electrical testing are essential.
Is the controller output lamp enough to diagnose the circuit?
No. It indicates a command state, not verified voltage, current, heater continuity or heat transfer.
Can any SSR with the same current label be substituted?
No. Control type, load type, voltage, thermal design, protection and approval must match the written circuit.
Who should open the live control cabinet?
Only qualified personnel following the site electrical-safety instruction and the line documentation.
