Paper cup pack checkweighing can support a count check only when the weight difference caused by a missing cup is distinguishable from normal variation. Cup weight, film, labels and measurement behavior all contribute. A correct-count pack and a short pack can overlap in gross weight even when the scale itself is working.
This guide evaluates feasibility for a specific pack. It does not establish legal net-content compliance or promise that an optional checkweigher can be installed on every line. Confirm the equipment configuration and acceptance method with the packing-system supplier.
Diagnostic decision table
| Source of variation | Data to retain | Decision risk |
|---|---|---|
| Individual cup weight | Representative cup lots and measured weights | A light correct pack resembles a short pack |
| Film and label tare | Actual empty packaging components | A heavy wrapper conceals a missing cup |
| Dynamic measurement | Repeated identified packs at approved conditions | Static results overstate line performance |
| Pack presentation | Spacing, orientation and neighboring packs | The weighing interval is disturbed |
Define the pack and the counting claim
Identify the intended cup count, cup construction, wrapping format, labels and any inserts. State whether the system is expected to detect one missing cup, a larger shortage or an unexpected extra item. Different claims require different separation between acceptable and unacceptable weight distributions.
Use physically counted reference packs whose contents have been independently checked. Keep those packs identifiable throughout the study. Do not use the machine counter as the only source of truth when the study is intended to verify a counting failure; that would make the reference depend on the system under investigation.
Measure cups and tare separately
Measure representative individual cups and actual packaging components with a suitable verified balance. Record their source lots and preparation. Gross pack weight comprises the cups plus packaging and any other included components. Tare variation therefore matters even when an average wrapper weight has been entered in a weighing system.
Keep raw data from multiple representative material groups rather than estimating every cup from one nominal gram value. Examine whether cup weights within a pack share a common lot-related shift. A simple calculation that assumes all components vary independently may understate the variation when an entire pack contains consistently heavier or lighter cups.
Build known-count challenge groups
Prepare correct-count, short-count and any other relevant challenge packs using the approved trial procedure. Include realistic combinations of cup and packaging variation. Keep these samples segregated from saleable production and reconcile them afterward. Use the supplier-approved route to present them to the checking equipment.
Plot or tabulate their measured gross weights by known count. If the groups overlap, a single weight threshold cannot perfectly separate them in the observed conditions. Do not solve that problem by choosing a convenient midpoint and describing every pack on the preferred side as correctly counted. Review an additional counting method or a narrower validated operating scope.
Verify performance during actual motion
Where an in-line checkweigher is proposed or installed, test identified packs under approved conveyor speed, spacing and presentation conditions. Compare repeated passes and independently prepared packs. Record the surrounding operating state because vibration, contact between packs or an interrupted weighing interval can affect the result.
Review the complete decision and rejection path with the supplier. A correctly displayed weight does not prove that the intended pack reaches the reject location. Preserve the challenge identity, displayed result and physical outcome together. Treat invalid measurements, missed decisions and incomplete rejection as separate findings rather than folding them into a single accuracy number.
Set a justified monitoring boundary
Agree operating limits and challenge checks from the evidence for this pack format. Record the permitted cup and packaging constructions and the conditions that require re-evaluation. A change in film width, label format or cup material can alter the weighing problem without changing the intended pack count.
Send HANNAI the known-count groups, cup and tare data, pack dimensions and dynamic results when evaluating a packing-line check. Keep the primary count requirement explicit. Weight can be a useful additional signal, but approval should describe what shortages it has actually been shown to detect and under which conditions.
Related equipment and next checks

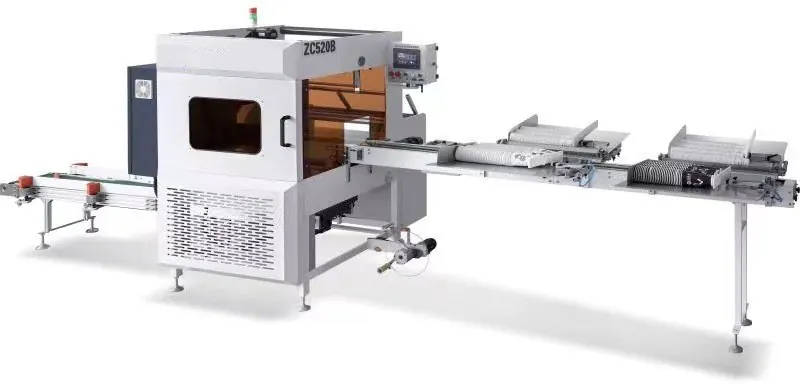

Review the paper cup packing equipment and the related guide to cup unit-weight and material-usage control. The Engineering Notes archive connects these checks with wider machine planning.
Technical reference
- METTLER TOLEDO: over/under checkweighing and tare functions — general reference; confirm applicability to the installed equipment.
Frequently asked questions
Can pack weight always detect one missing cup?
No. Normal component and measurement variation may overlap the missing-cup difference.
Is average film tare enough for every pack?
Evaluate actual tare variation before relying on an average value.
Does a static balance trial validate an in-line system?
No. Verify the dynamic measurement and rejection behavior separately.
Should deliberately short packs enter saleable stock?
No. Identify, segregate and reconcile all challenge samples.
