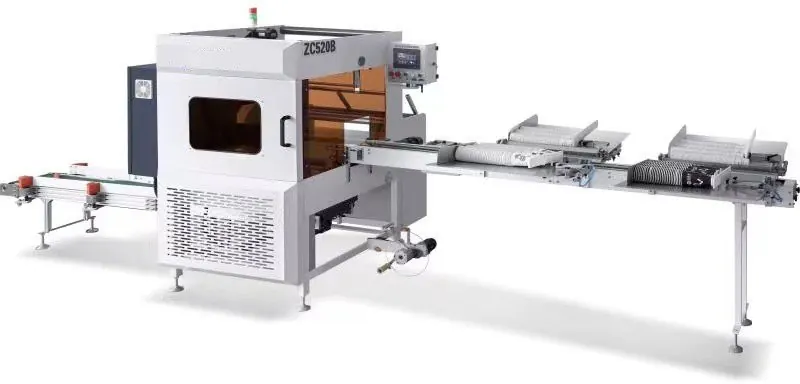

When a cup pack reaches the next conveyor at an angle, we first want to know whether the belt itself has moved. A package can slide or rotate across a correctly running belt. Adjusting tracking before making that distinction can turn a product-transfer problem into a belt problem.
This guide concerns flat fabric or similar belts with a supplier-defined tracking procedure. Modular, toothed and positively guided belts need their own methods. Identify the installed design before deciding which adjustment is available.
Two forum accounts show why the history matters
In one Reddit conveyor-repair discussion, an operator reported drift after relacing a belt and questioned whether the joint was square. In another maintenance discussion, the belt changed its behavior when product arrived. Neither account proves a cause for a cup-packing line. They illustrate two useful questions: what changed before the drift, and does loading change the belt’s path?
Ask about recent belt replacement, joining, cleaning, relocation and product changeover. Keep the answers with the first observation. A fault that starts immediately after a repair deserves a check of that repair, even if tracking adjustments previously worked.
Watch a fixed reference, not the package alone
From a permitted position outside the guards, compare the belt edge with a fixed part of the conveyor. Note the travel direction, where the deviation begins and whether it repeats at one position in the belt circuit. Observe pack movement separately. Do not mark, measure or touch a moving belt by hand.
| What moves? | Useful evidence | First investigation boundary |
|---|---|---|
| Pack turns, belt edge stays steady | Pack shape, seal protrusion and transfer presentation | Product guidance or transfer geometry |
| Belt wanders without product | Belt position by circuit and maintenance history | Belt, splice, rollers and supporting structure |
| Belt path changes only with product | Comparable empty/loaded observations | Loading forces and support under load |
| Deviation repeats at a particular belt location | A safely identified joint or local defect | Belt/joint condition, not repeated compensating adjustments |
Inspect the repair and the return path before chasing tension
Under the line’s approved isolation procedure, inspect accessible rollers, pulley surfaces and the return path for film scraps, adhesive, rubbing and damage. Review the belt identity and joining method against the specified replacement. If the splice looks skewed, record it and seek the approved acceptance or repair criteria; visual suspicion alone does not set an allowable tolerance.
Confirm frame and roller alignment from the conveyor documents. A square frame does not prove that every pulley or bearing support is correctly positioned. Record the existing take-up positions before any authorized change. Stop if hardware is damaged or the specified belt/joint cannot be confirmed.
Tension and tracking solve different questions
Dorner’s belt-tension guidance distinguishes belt tightness from alignment and explains that both excessive and insufficient tension can create problems. That supports checking the design and condition before tightening further. It does not supply an adjustment amount for a HANNAI conveyor.
Follow the installed conveyor’s sequence for tension and tracking. Do not publish a universal “turn the left screw” rule: the effect depends on the layout and belt direction. Make one permitted correction at a time and retain the result. Access to hardware needs isolation unless the design provides a documented safe external adjustment method.
Verify both the belt and the transferred cup packs
With required guards restored, use the approved trial to compare empty running and representative loaded operation. Include the transfer or restart that previously triggered the symptom. Stop for contact with the frame, fresh edge damage or an unsafe pack accumulation; continued rubbing is not a useful endurance test.
Record two acceptance results: the belt remains within the supplier’s tracking criteria, and packs transfer in the intended orientation without damaging the pack or cups. One result cannot stand in for the other. If behavior changes under load, send the comparison rather than describing the belt as simply “adjusted.”
See the cup packing equipment for product context and the discharge and accumulation guide for downstream flow. Send belt identity, repair history, safe photos and empty/loaded observations through our inquiry page to clarify the next check.
