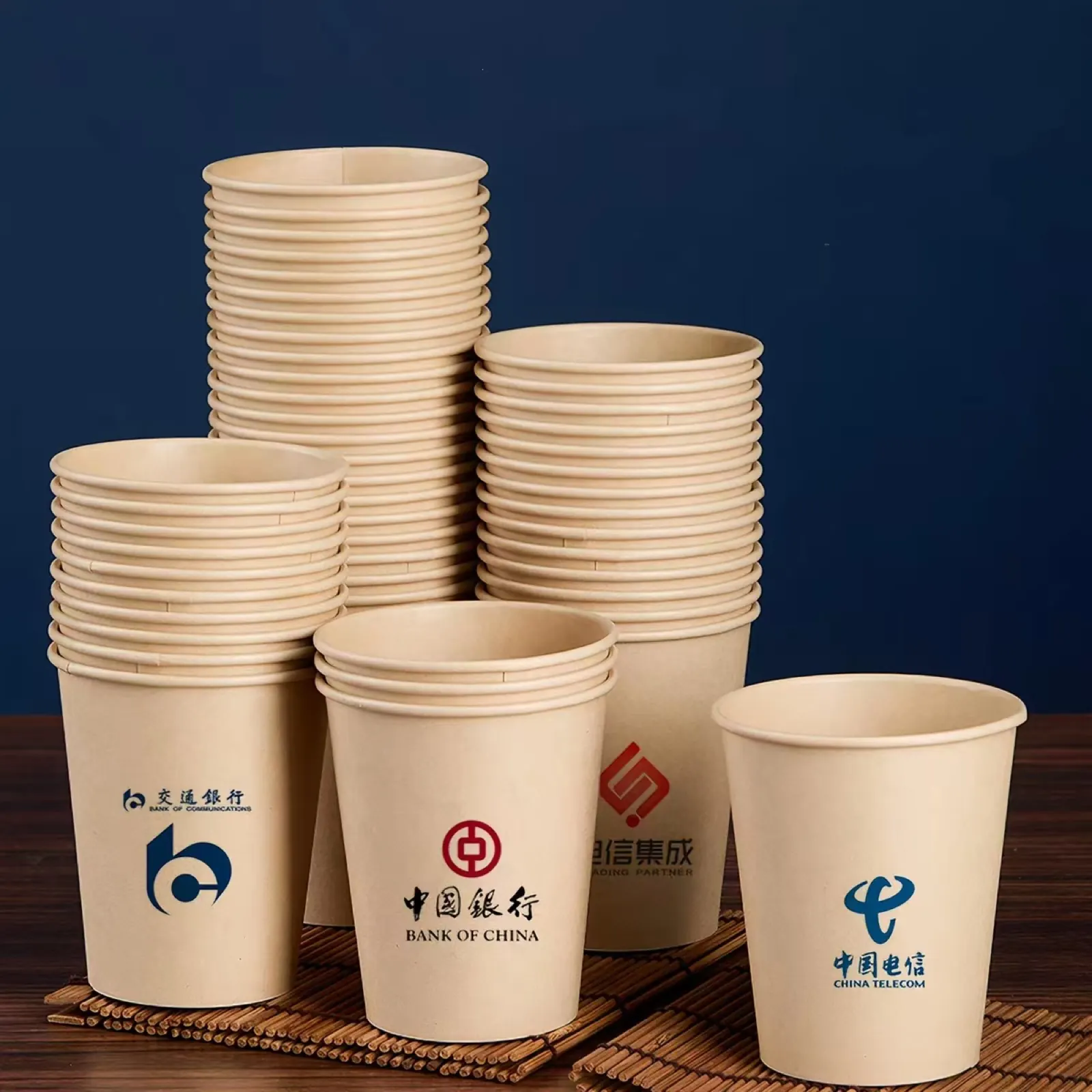

Paper cup stack extraction force can help explain why a stack separates easily by hand yet jams in a dispenser or loading system. The result depends on how the stack was formed, held and pulled. A repeatable fixture is needed before force readings can support a comparison between cup lots.
This is a comparative method-development guide, not a standardized force limit. Agree the fixture and acceptance criteria with the cup customer and the downstream equipment supplier. Do not transfer a bench result to a dispenser without checking the actual application.
Diagnostic decision table
| Observed behavior | Method check | Interpretation limit |
|---|---|---|
| High initial peak then easy motion | Separate breakaway from later resistance | One peak does not describe the whole stroke |
| Result changes with grip pressure | Check cup distortion in the fixture | The fixture may create extra contact |
| Later pulls become easier | Record extraction order and stack history | Repeated pulls alter the original stack |
| Bench test passes but dispenser jams | Compare restraint and extraction geometry | Bench force is not application validation |
Define the stack before defining the pull
Record cup size, material lot, forming condition and elapsed time since manufacture. Specify the number of cups, their orientation and the way the stack was assembled. Include any packing or storage load that forms part of the complaint. A loosely assembled laboratory stack may not reproduce the condition of a compressed commercial pack.
Use independently prepared stacks for repeat comparisons. Label the position of the cup being removed and whether it is the first extraction. Do not rebuild a stack by hand between every pull without documenting that intervention; the resulting contact history can differ from both the original stack and the downstream process.
Design restraint that does not create the fault
Have a competent test specialist select supports and grips that hold the intended parts without squeezing or damaging the cup walls. Align the pulling direction with the intended method. Record the contact locations and provide a fixture drawing or clear photographs so another operator can reproduce the setup.
Watch for wall collapse, rim distortion, tilting or grip slip during preliminary trials. If these occur before separation, revise the method and identify those tests as fixture-limited results. Do not call the measured maximum a nesting force when the setup actually measured damage caused by an unsuitable clamp.
Verify the force measurement system
Select a suitable force sensor, test stand and measurement range with the test specialist. Record the calibration status, zero procedure, acquisition settings and pull speed. A display that updates slowly may not resolve a brief event, while an unsuitable range can make small differences difficult to interpret.
Preserve the force-versus-displacement record where the system provides it. Define whether the reported quantity is the initial separation peak, resistance over a specified part of the stroke or another agreed metric. Keep the definition unchanged across lots; comparing a peak from one test with an average from another creates a false material difference.
Compare representative histories
Compare reference and suspect cups with the same fixture and preparation. Where the complaint follows storage or packing, include those histories as separate conditions. Keep sample identities and test order visible in the data. Avoid letting one group wait much longer before testing unless elapsed time is the planned variable.
Examine the distribution of results and the physical behavior, not only an average. Record multiple-cup removal, rim damage and incomplete separation as distinct outcomes. A low recorded force caused by grip slip is not a successful extraction. Keep abnormal curves with their observations so they can be interpreted rather than silently discarded.
Connect the bench result to the application
Run an agreed functional check in the intended dispenser, packing infeed or loading system using representative stacks. Compare how that system restrains and releases the cups with the bench fixture. A force difference can support a diagnosis, but acceptable behavior also depends on geometry, timing and stack handling.
Define any incoming or finished-goods limit only after the method and application relationship are understood. Send HANNAI the fixture description, stack preparation, curves and functional outcomes. Include cup drawings and lot references so that nesting geometry and machine handling can be reviewed together without guessing from a single force number.
Related equipment and next checks
Review the paper cup packing machine and the related guide to stackability and denesting inspection. The Engineering Notes archive connects these checks with wider machine planning.
Frequently asked questions
Is there one extraction-force limit for every cup?
No. The method, cup construction and intended application determine the requirement.
Can a hand pull validate an automatic dispenser?
It is useful observation, but it does not reproduce every restraint and motion condition.
Should a slipped-grip test count as a low-force pass?
No. Identify it as an invalid or fixture-limited measurement.
Can successive pulls from one stack be treated identically?
Record their order because each extraction changes the stack condition.
