Paper Plate and Box Machine Heater Plate Temperature Uniformity Inspection Guide

Investigate uneven thermoforming through heater-zone identity, sensor contact, surface temperature mapping, platen condition and labeled products.

The heater plate, heating zones, sensors, insulation and forming platen interface are part of the production sequence, and their condition can contribute to uneven forming depth, local scorching, incomplete corners, sticking or product variation across the tool area.

Final limits, parts and adjustments remain configuration-specific; use the machine-specific heater and tooling drawings, raw material data, controller documentation and agreed temperature-measurement method instead of applying a universal value.

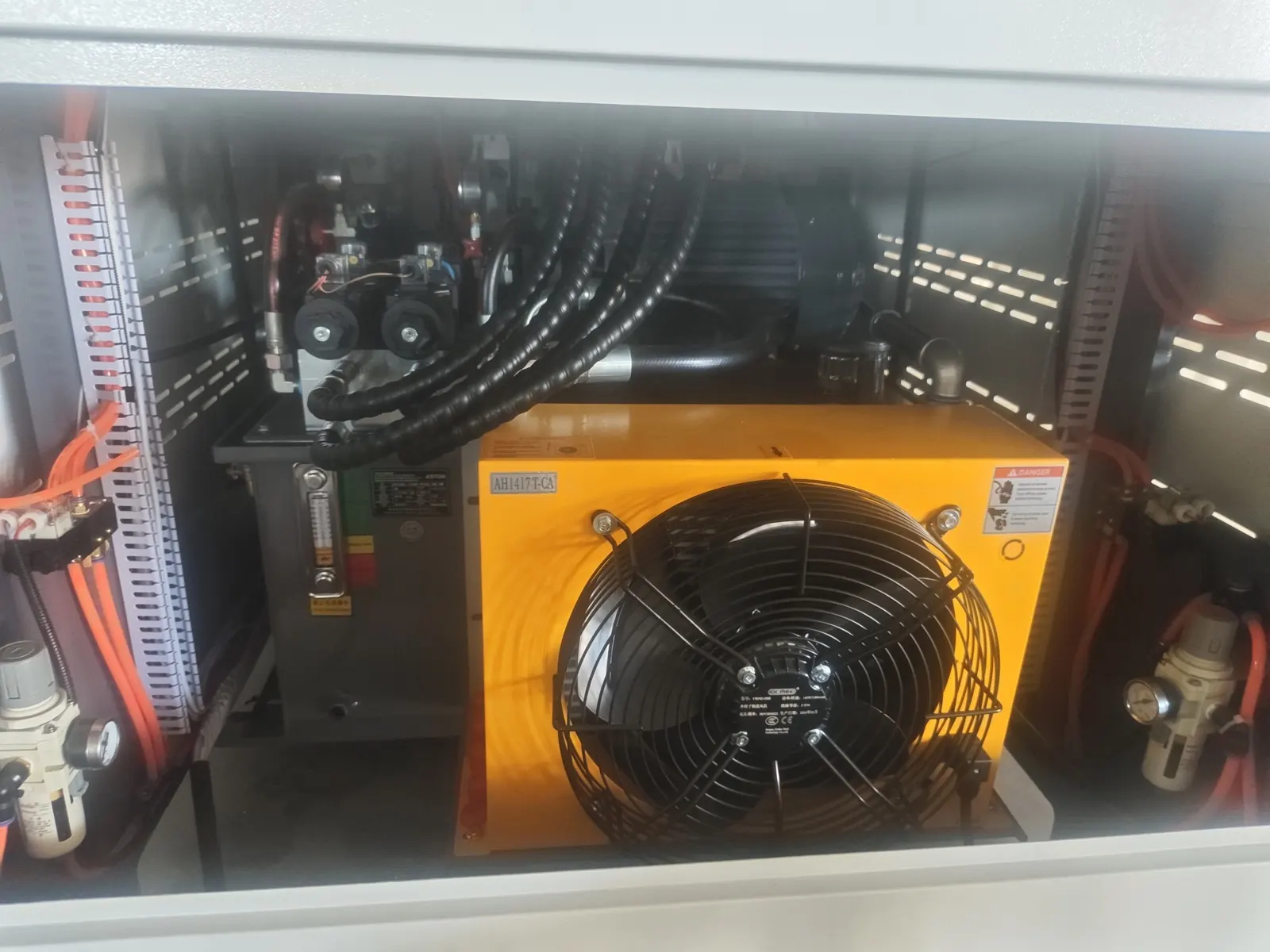

Cooling fan and wiring inside a machine cabinet
Use the actual machine identity and delivered documents when inspecting the heater plate, heating zones, sensors, insulation and forming platen interface. The image provides equipment context and does not define a universal installed part specification.

Map product defects across the forming area

Enter tool set, heater-zone layout, sensor channels, raw material and coating, forming position and production recipe. Mark when the concern appears during cold warm-up, thermal stabilization, first-off products, steady production and restart after a stop. Include the operator observation, machine state, raw material or job identity and the last known acceptable production period. This prevents several different faults from being grouped under one general alarm or quality description.

Use a heater-uniformity evidence table

Observed condition Inspection findings to collect Diagnostic direction
One quadrant forms shallow Position-mapped products and surface temperature map Local heat transfer, pressure or tooling issue
Center overheats while edges remain cool Warm-up trend, insulation and zone output Zone balance or heat-loss pattern
Displayed value is stable but products vary Independent agreed map and sensor contact audit Sensor representation, platen contact or raw material
Defect moves with the tool Tool rotation test where agreed and position labels Tooling rather than fixed heater zone
Variation increases after idle Restart sequence, dwell and first-product map Thermal recovery or residence effect

The diagnostic directions are possibilities to investigate, not confirmed causes. Compare observations with the actual circuit, tooling and component documentation before replacing a part or changing a setting.

Control hazardous energy and preserve references

Apply the site lockout and isolation procedure for electrical, pneumatic, vacuum, thermal, gravity and stored mechanical energy that applies to this equipment. Verify the zero-energy state before guards, terminals, tubing, tooling or drive components are accessed. Hot surfaces and charged electrical parts may remain hazardous after the machine stops.

Photograph connectors, tube routing, witness marks, adjustment positions, wiring labels and installed part orientation before disassembly. Qualified personnel should perform live electrical or pressure measurements only when the agreed diagnostic procedure specifically requires them and appropriate controls are in place.

Inspect the installed part in its complete load path

Compare temperature inspection findings with platen parallelism, tool cleanliness, pressure distribution, dwell, raw material moisture and blank position. A cold-looking product corner may result from poor contact or pressure even when the heater zone is operating.

Compare the affected component with the related platen parallelism and guide-post inspection guide before deciding that one observation identifies the cause.

Verify the repair in stages

Before power or pressure is restored, reconfirm tools are removed, connections are secure, guards are reinstated and the work area is clear. Use the agreed manual, jog or slow-cycle test first, then progress through small controlled production stages while watching the original symptom and any secondary effect.

Map the agreed measurement points after stabilization, retain products by platen position, compare depth and surface condition, and repeat after an approved correction without changing multiple variables together. Do not release the machine based only on one acceptable cycle. Document the parts or job parameters changed, final observations, retained samples and the person authorized to return the equipment to production.

Can one infrared reading represent the entire heater plate?

No. Surface emissivity, angle, distance and location affect the reading; use an agreed mapped method.

Should setpoints be raised to fix one shallow corner?

Not before contact, pressure, blank position, tool condition and the zone map are checked.

Can a stable controller value hide a heater fault?

Yes. The sensor may not represent every surface location, and a multi-zone load can fail locally.

Which samples should be retained?

Keep position-labeled products from warm-up and stable operation with raw material lot, recipe, tool identity and temperature map.
