Digital printing machine substrate-feeding and transport troubleshooting for paper cups and food packaging should separate material movement from image-generation faults. Skew, double feed, edge damage, head contact, variable position or a transport stop can later appear as color or registration defects. Changing print settings before proving the material path can hide the first mechanical or material event.
Define the supplied media path and substrate
Use the printer manual and job specification to identify whether the delivered system handles sheets, prepared blanks or another approved paper format. Record material construction, coating, dimensions, grain or orientation where relevant, printable side, lot, conditioning history and the approved loading direction.

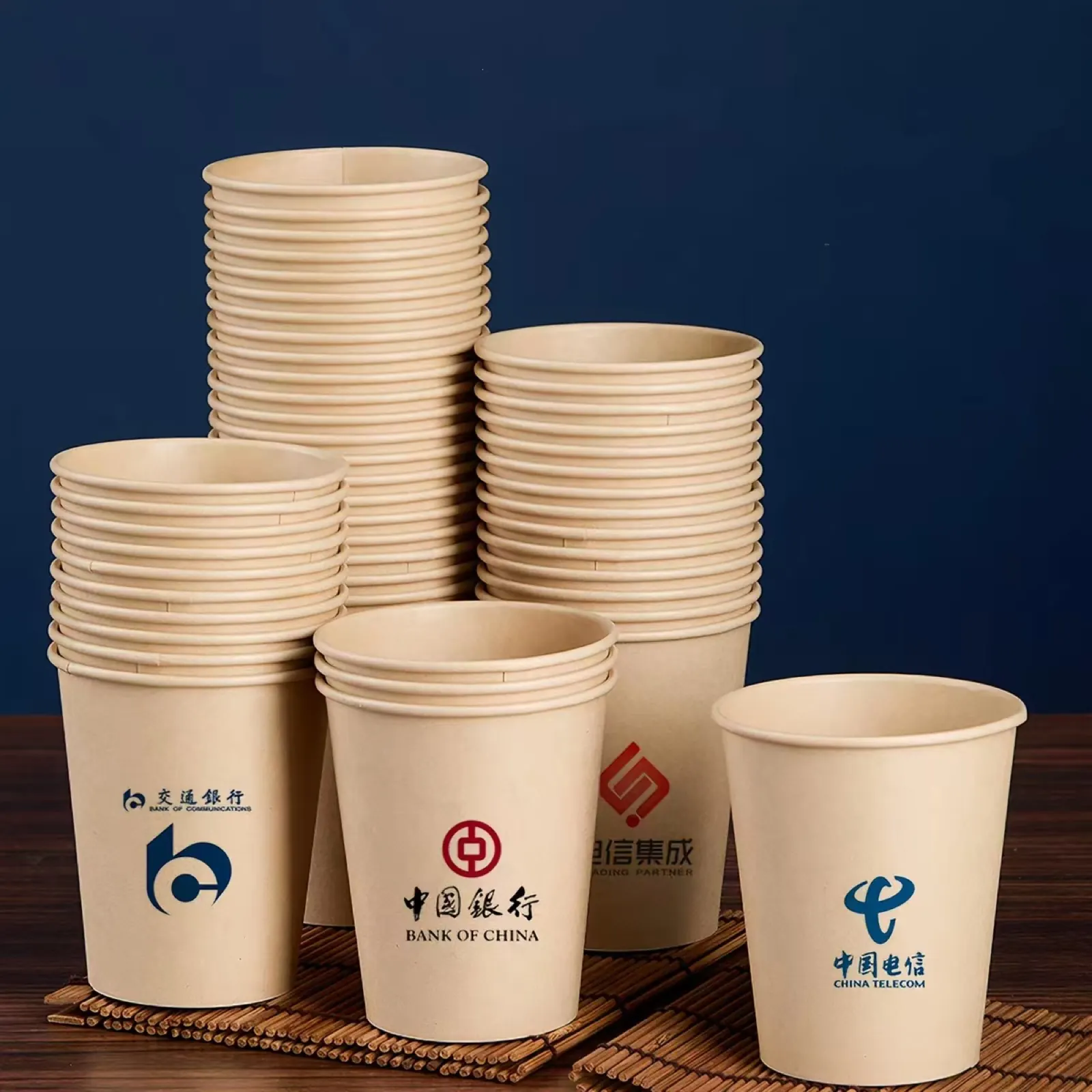

The paper cup digital printing machine page explains the application scope for custom cups and food packaging. Final media compatibility, treatment, ink and settings must be confirmed from the actual printer and supplier trial.
Preserve the first feed event
Record whether the symptom occurs on pickup, separation, alignment, entry, transport, printing or delivery. Save the first printer message and job state. Keep the failed sheet or blank in its original orientation and mark leading edge, control edge and printed face.
Classify the pattern: no pickup, double feed, skew, repeated edge contact, slip, wrinkle, head contact, transport stop, image displaced as a whole or progressive drift through the job. A defect repeating at the same physical edge often points to a different cause than random movement across multiple lots.
Use a transport evidence table
| Observed pattern | Evidence to inspect | Diagnostic direction |
|---|---|---|
| No pickup or repeated retry | Stack condition, material curl, separator, pickup surface and sensor state | Separate material presentation from actuator or sensor fault |
| Double feed | Static, sheet separation, stack height, surface friction and material lot | Review conditioning and separation control |
| Image shifts with a skewed edge | Leading and side references, transport marks and sheet orientation | Correct physical registration before artwork changes |
| Head contact or surface marking | Thickness, curl, debris, raised edge and approved media setting | Stop to protect the print system and verify substrate condition |
| Fault begins after several sheets | Roller contamination, static, temperature or humidity context and delivery stack | Look for progressive material or transport change |
Inspect material preparation first
Check dimensions, thickness or basis specification, coating, edge quality, curl, warp, moisture history, dust and blocking between sheets. Fan or condition material only by the approved method. Do not flex coated paper aggressively or use uncontrolled air that can spread dust into the print mechanism.
Compare with a retained accepted lot under the same job and machine condition. If the fault follows the material, preserve labels and samples for supplier review. The paper and coating incoming inspection guide provides a structured receiving check.
Inspect pickup, guides and transport under isolation
Follow the printer shutdown and isolation procedure before opening guarded transport areas. Some components, vacuum circuits, moving carriages and print-system surfaces require a specific parking or service state. Never move a printhead or clean a sensitive component using an improvised method.
Inspect accessible pickup elements, separators, guides, rollers, belts, sensors and delivery surfaces for paper dust, adhesive, ink transfer, scratches, loose parts or a foreign object. Use only manufacturer-approved cleaning materials. Preserve guide and sensor references before any authorized adjustment.
Separate electronic registration from physical movement
Print a permitted diagnostic or reference job and compare the leading edge, side edge and image position on consecutive samples. If the paper edge itself moves, correct feeding and transport before changing artwork compensation. If the physical edge remains stable but the image moves, preserve job, controller and calibration evidence for the print-system diagnosis.
Do not apply a large digital offset to compensate for random skew or slip. That may make one sample look acceptable while increasing variation through the batch. Use the printer’s approved calibration and media profile procedures.
Verify the correction through the downstream workflow
After restoration, run an identified sample batch at the approved setup condition. Record feed messages, rejected sheets, edge position and printed reference. Inspect image registration, surface marks, color only after transport is stable, and retain consecutive samples rather than a single best sheet.
If the printed material will be die cut into cup fan blanks, verify print-to-cut references with the actual approved layout. A stable print result must still align with the downstream cutting and forming workflow.
Frequently asked questions
Does an image-registration problem always require software calibration?
No. Skew, slip, double feed, edge damage and material curl can move the substrate physically. Prove the paper edge is stable before changing digital compensation.
Can any coated paper be used if the printer can pick it up?
No. Feed success does not confirm ink, coating, thickness, heat, food-packaging workflow or finishing compatibility. Confirm material approval through the printer and project suppliers.
Why does the fault appear only after several sheets?
Progressive static, contamination, stack change, curl, delivery resistance or operating temperature may alter transport. Record the sheet sequence and room or machine condition.
What evidence should be sent for remote review?
Provide the printer model, substrate labels and dimensions, job and media-profile references, marked failed samples, first message, loading photo, safe transport evidence and recent cleaning or calibration history.
