Paper cup leak test method validation asks whether the procedure can reliably detect the defect or performance difference it is intended to find. Filling cups and waiting is not a complete method when liquid, fill height, observation surface, endpoint and invalid-test rules vary between operators.
This guide supports internal method development. It does not define a food-safety test, universal hold time or customer acceptance limit. Use the approved product requirement, safe liquid, competent laboratory review and any governing standard.
Diagnostic decision table
| Validation question | Controlled evidence | Failure to avoid |
|---|---|---|
| What counts as a leak? | Written endpoint and examples | Operators use different visual thresholds |
| Can the method detect a known fault? | Suitable positive control or challenged sample | All tests pass because method is insensitive |
| Does a sound cup remain negative? | Representative negative control | Fixture or handling creates false failures |
| What invalidates a run? | Predefined validity rules | Unfavorable data are deleted afterward |
Define the intended use and endpoint
State whether the method screens for immediate leakage, records time to first evidence, locates failure or compares constructions. Define the liquid, approved temperature, fill level, exposure time, support, observation surface and inspection frequency. Describe exactly what visible event ends the test.
Keep seepage, condensation, spills and handling damage distinct. Use photographs or controlled examples for operator training. Identify whether the result is pass/fail or quantitative. A method validated for one endpoint should not be assumed suitable for another, such as using an immediate screen to predict long-duration use.
Select representative negative and challenge controls

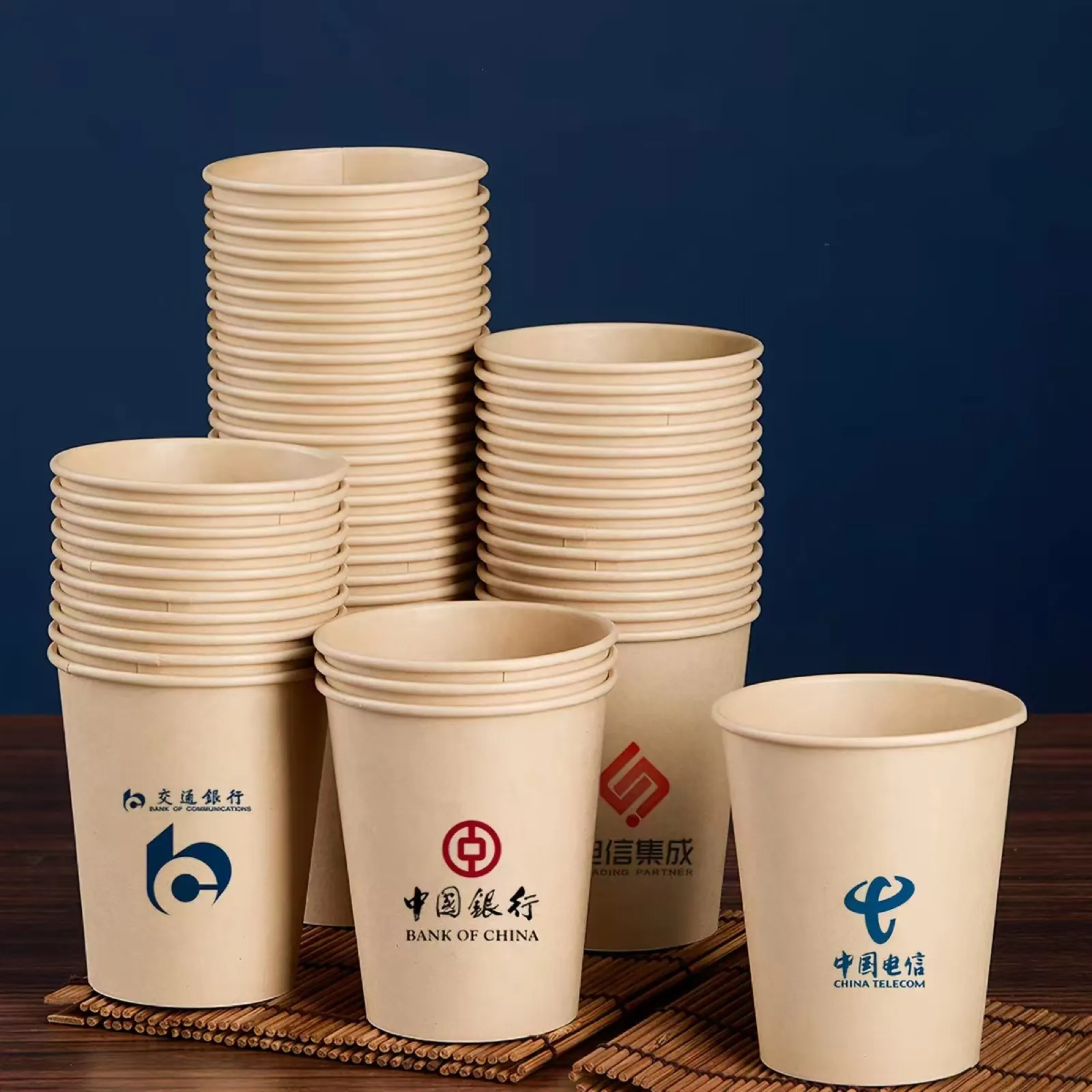

Include satisfactory cups that represent the intended construction and handling. Develop a safe, traceable positive control or challenge that produces the target response without introducing an unrelated mechanism. The challenge should be stable enough to demonstrate that the method is functioning.
NIST literature on positive controls emphasizes responses that are reproducible and span the relevant range. The cited work concerns another assay field, so use the principle carefully rather than copying its materials. For cups, qualified personnel must design controls that represent the leak mechanism and do not contaminate production or create unsafe handling.
Study sensitivity, false calls and robustness
Test controls and representative production across operators, days and relevant equipment. Record whether the method detects challenged samples and whether satisfactory controls are called failures. Explore justified small variations in setup, such as permitted fill positioning or observation timing, to identify fragile steps.
Do not improve apparent performance by removing difficult samples after seeing results. Keep all planned units and denominators. If a challenge is too obvious, it may demonstrate only gross detection and not the required sensitivity. If the control changes over storage, establish preparation and replacement rules.
Control invalid tests and data handling
Define invalid conditions before the study: spill during filling, damaged cup before test, wrong liquid, timer failure or lost sample identity. Record every invalid event and repeat only according to the approved plan. Separate a method failure from a cup failure rather than silently replacing the result.
Use blind or randomized sample order when practical to reduce expectation bias. Preserve cup identity, forming position, material lot and test operator. Review agreement and time data with a competent analyst. A high pass percentage alone says little if positive controls were not detected or invalid attempts were excluded inconsistently.
Release and monitor the validated procedure
Approve the method only for the demonstrated cup constructions, conditions and decision. Train operators with the same endpoint examples and retain the controlled version. Use periodic controls or comparison samples to show that the method continues to perform after equipment, liquid, fixture or staff changes.
Send HANNAI the endpoint, sample identities, control design, failure locations and invalid-test log when leak results are used to investigate a machine. This evidence can connect failures to bottom or side-seam conditions while keeping the test’s demonstrated capability separate from broader product or regulatory claims.
Related equipment and next checks
Review the HN-S120 paper cup making machine and the related guide to leak timing and failure mapping. The Engineering Notes archive connects these checks with wider machine planning.
Technical reference
- NIST: characteristics for selecting positive control material — general reference; confirm applicability to the installed equipment.
Frequently asked questions
Is filling a cup with water automatically a validated leak test?
No. The endpoint, conditions, controls and method performance must be defined.
Why include a positive control?
It helps show that the method can detect the intended response.
Can an invalid test simply be deleted?
Retain it with the predefined reason and follow the approved repeat rule.
Does validation for one cup cover every construction?
Only the demonstrated scope should be claimed.
