HN-S120 Paper Cup Making Machine
A high-speed paper cup making machine for 1oz-16oz cups, designed for buyers who need stable output, ultrasonic side sealing and export-ready configuration support.
Key Specifications
| Model | HN-S120 High-Speed Configuration |
|---|---|
| Paper cup size | 1oz-16oz |
| Speed | 110-120 pcs/min |
| Paper material | One-side or two-side PE coated paper |
| Suitable paper weight | 150-280 gsm, +/-20 gsm |
| Voltage supply | Adjustable according to local voltage |
| Cup dimension range | Bottom 20-74 mm, top 40-95 mm, height 30-160 mm |
| Working air source | 0.4-0.5 Mpa; 0.4 m3/min |
| Side sealing | Ultrasonic |
| Bottom knurling | Hot air system |
| General power | 4.5 kW |
| Net weight | 1500 kg |
| Main machine size | L1800 x W1100 x H1750 mm |
| Cup collector | 100 kg; L900 x W600 x H1500 mm |
What Buyers Usually Confirm
See the HN-S120 Running
This short machine clip adds a direct operating reference without presenting an unconfirmed customer result or fixed production guarantee.
Use the Clip to Prepare Better Questions
Review the visible feeding path, operating area and collection arrangement. For acceptance, ask for a project-specific trial using the agreed cup, paper and machine settings.
- Confirm which cup size and paper are used
- Agree the test duration and output checkpoint
- Record forming, side seam and bottom quality checks
- Request nameplate, utilities and supplied-scope confirmation

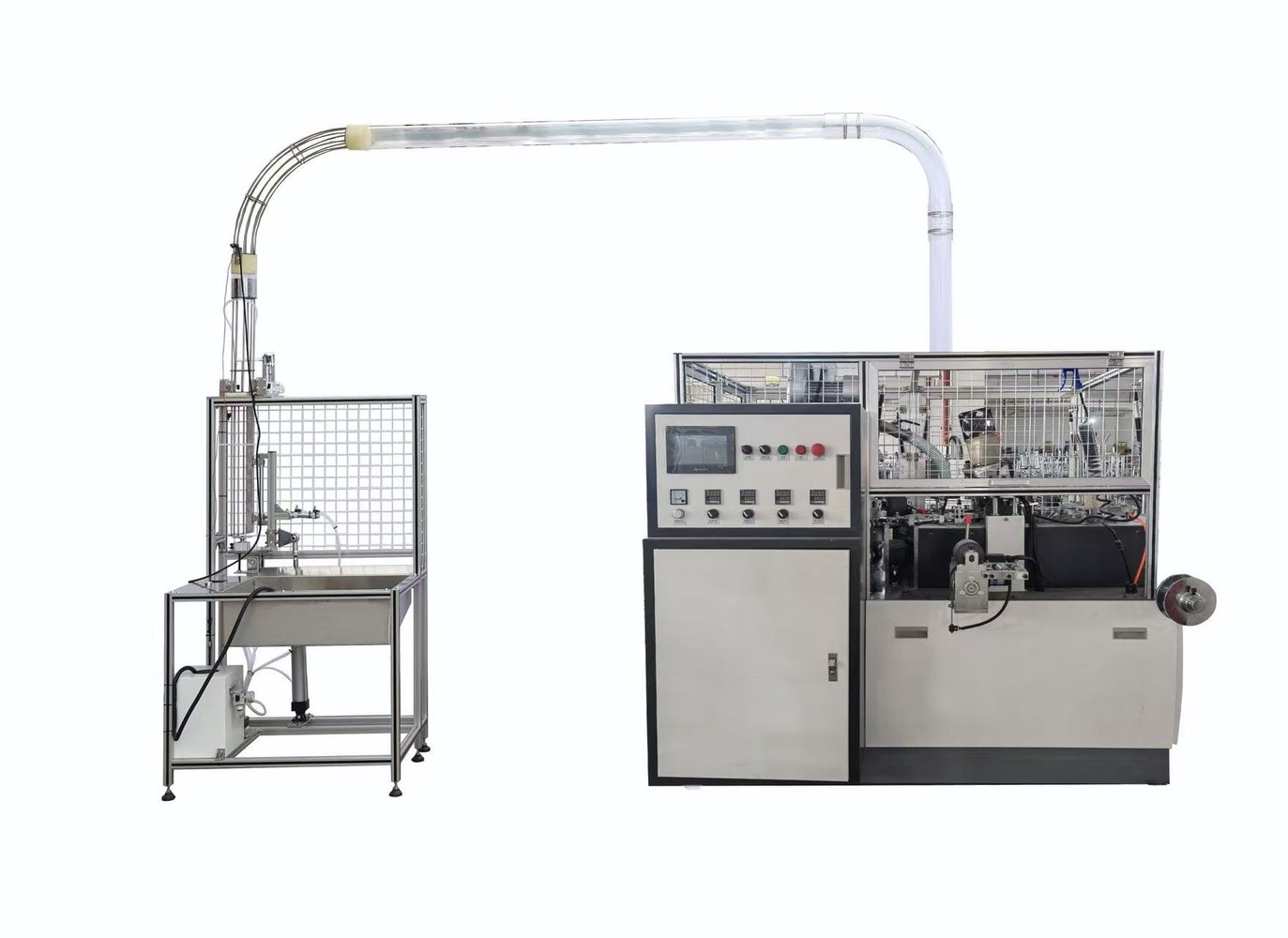

Machine Details & Project View
Real product photos help buyers understand the equipment structure before sending detailed requirements.
Suitable Buyer Projects
Questions Before Quotation
Open the questions most relevant to your cup size, output target and factory setup.
What cup information should I send first?
Please send ounce size, top diameter, bottom diameter, cup height and paper GSM if available.
Can the machine match my local voltage?
Voltage can be discussed before production according to the buyer local factory condition.
Is the cup mold included in the discussion?
Mold details should be confirmed according to your target cup size and final quotation plan.
Can I ask about a complete line?
Yes. If you also need die cutting, printing or packing equipment, send the full project target.
What to Confirm Before Ordering the HN-S120
The final scope follows the confirmed cup, paper, utilities and quotation. These checkpoints help both sides avoid unclear expectations.
Confirm cup dimensions, paper coating, GSM and intended use.
Confirm local voltage, frequency, compressed air and installation space.
Agree on trial material, output check, forming quality and documentation.
Confirm export packing, shipping marks, unloading and startup preparation.
Compare Related Equipment & Guides
Continue from this page to compare machines, understand the production line and prepare a clearer inquiry for quotation.
HN-M100 Automatic Paper Cup Machine
100-110 pcs/min model for 1oz-9oz cups and practical factory projects.

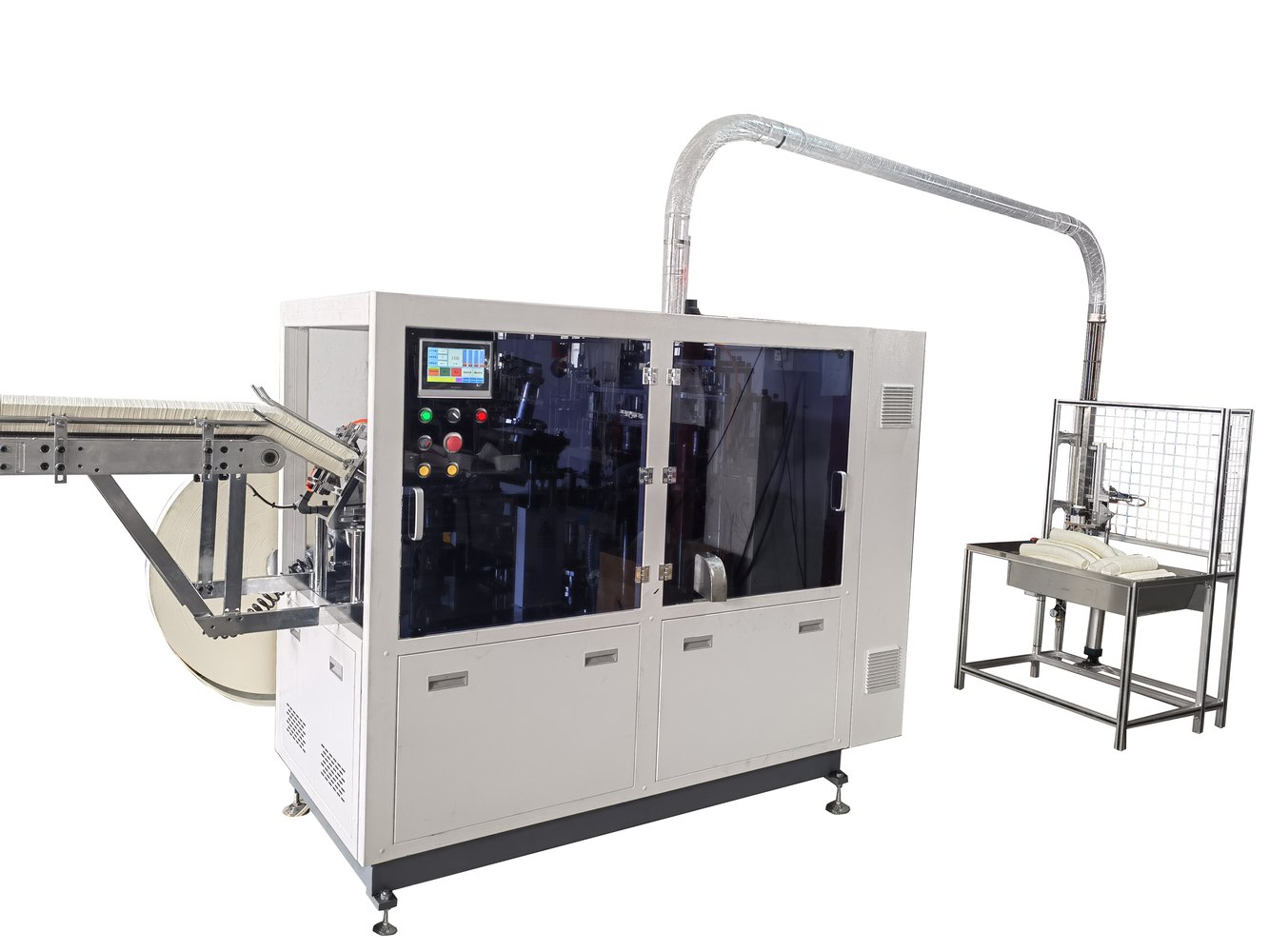

HN-180 High Speed Paper Cup Machine
150-180 pcs/min high-speed option for higher output paper cup production.
110-120 pcs/min Paper Cup Machine Guide
Guide for buyers comparing cup range, output planning and a 110-120 pcs/min configuration.
Paper Cup Machine for Takeaway Cups
Buyer guide for takeaway drink cups, food service projects and machine selection by cup range and output.
Paper Cup Manufacturing Process Guide
Understand the practical workflow from paper material and cup blanks to forming, inspection and finished-cup packing.
Review the HN-S120 Before Quotation
Use the real machine views and the downloadable specification sheet to check the starting configuration. Final mold, utilities, options and acceptance scope follow the confirmed project.
One-page English Datasheet
Includes the verified working range, speed, material, utilities, sealing method, dimensions and quotation checklist currently used on this product page.
Ask sales to state the cup size, paper material and machine setting shown in any supplied trial video.Review Service & Support scope →Buyer receives an agreed cup-size record or sample reference before mold and machine scope are finalized.
Agree on trial material, test duration, forming-quality checkpoints and the photos or video to be supplied.
Record the confirmed voltage, machine nameplate, supplied scope and agreed operating checks before shipment.
Confirm export packing, shipping marks and the photos needed for unloading and receiving preparation.
Need a project-specific evidence package? Send the cup drawing, paper GSM, target output, voltage and destination country so the requested records can be written into the quotation scope.
Prepare HN-S120 InquiryPrepare a Clear Project Sheet for the HN-S120
Exact utility, packing and weight details follow the confirmed cup, mold and final configuration. This checklist keeps the quotation discussion practical.
Send a cup drawing or sample, paper GSM, output target, voltage and destination country. HANNAI can prepare the relevant detail sheet for the confirmed machine configuration.
Request Detailed Parameter SheetBefore quotation, please prepare these details
- Cup size or sample photo
- Target production speed or daily output
- Paper material and GSM
- Factory voltage and destination country
- Whether you need supporting machines such as die cutting or packing equipment
