HN-180 High Speed Paper Cup Machine
A high-speed paper cup machine for buyers who need stronger output capacity, suitable for 1oz-10oz paper cup production projects.
Key Specifications
| Model | HN-180 High Speed Paper Cup Machine |
|---|---|
| Paper cup size | 1oz-10oz |
| Speed | 150-180 pcs/min |
| Paper material | One-side or two-side PE coated paper |
| Suitable paper weight | 160-300 gsm, +/-20 gsm |
| Voltage supply | 380V or 220V, 50/60Hz; adjustable according to local voltage |
| Cup dimension range | Bottom 30-58 mm, top 40-80 mm, height 30-100 mm |
| Working air source | 0.4-0.6 Mpa; 0.4 m3/min |
| Side sealing | Ultrasonic and hot-blast air |
| Bottom knurling | Hot-blast air |
| Total power | 8 kW |
| Net weight | 1800 kg |
| Machine size | L1890 x W1050 x H1680 mm |
What Buyers Usually Confirm

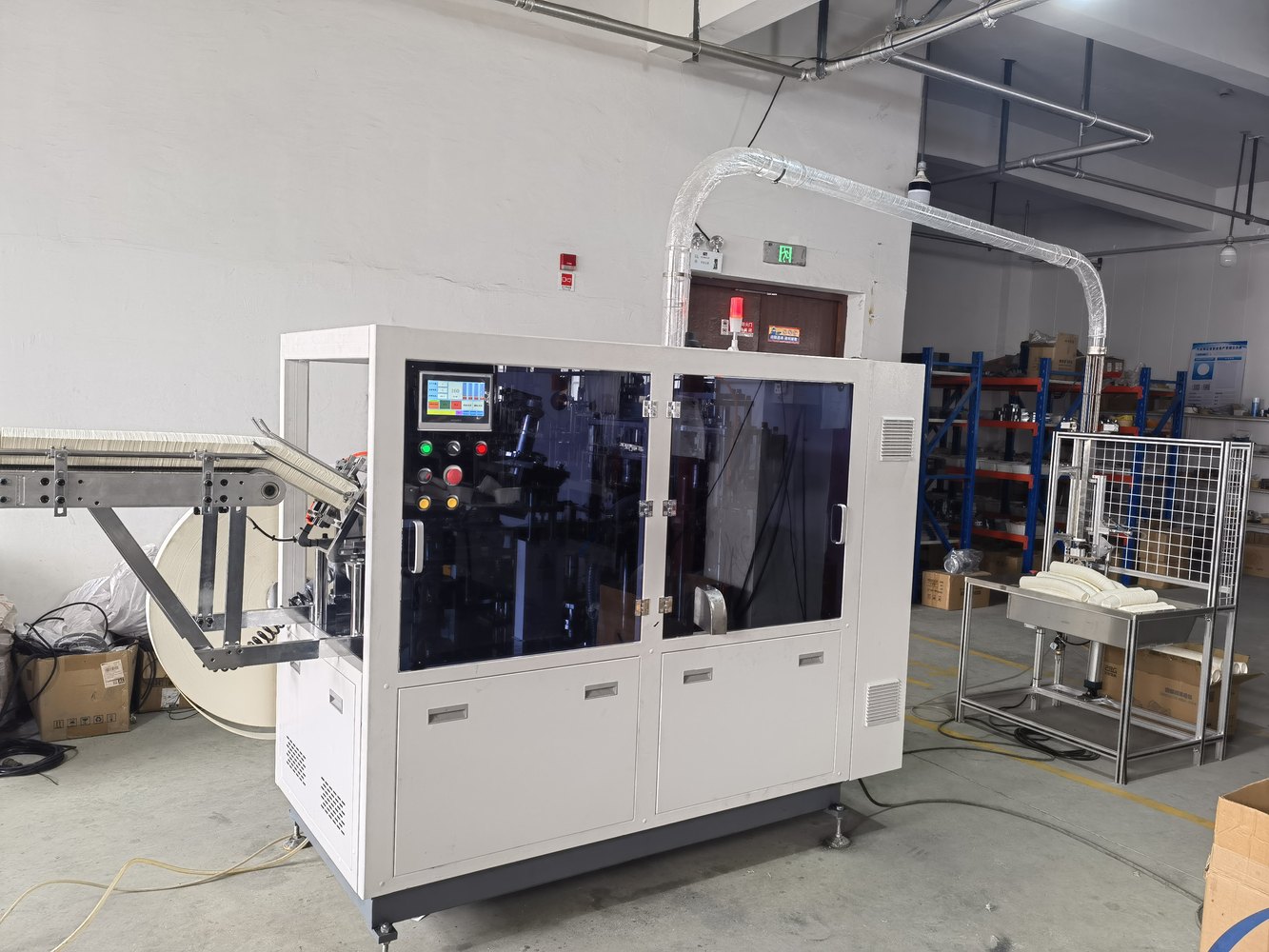

Machine Details & Project View
Real product photos help buyers understand the equipment structure before sending detailed requirements.
Suitable Buyer Projects
Questions Before Quotation
Open the questions most relevant to your cup size, output target and factory setup.
Who should choose HN-180?
Choose HN-180 when your main target is higher output and your cup size fits the machine range.
What details should I confirm first?
Cup dimensions, paper GSM, voltage, target output and whether supporting equipment is needed.
Can it be matched with a production line?
Yes. It can be discussed together with die cutting, printing and packing equipment.
Is price shown on the website?
No. For machinery projects, quotation should be prepared after confirming specifications and destination details.
What to Confirm Before Ordering the HN-180
The final scope follows the confirmed cup, paper, utilities and quotation. These checkpoints help both sides avoid unclear expectations.
Confirm cup dimensions, paper coating, GSM and intended use.
Confirm local voltage, frequency, compressed air and installation space.
Agree on trial material, output check, forming quality and documentation.
Confirm export packing, shipping marks, unloading and startup preparation.
Compare Related Equipment & Guides
Continue from this page to compare machines, understand the production line and prepare a clearer inquiry for quotation.

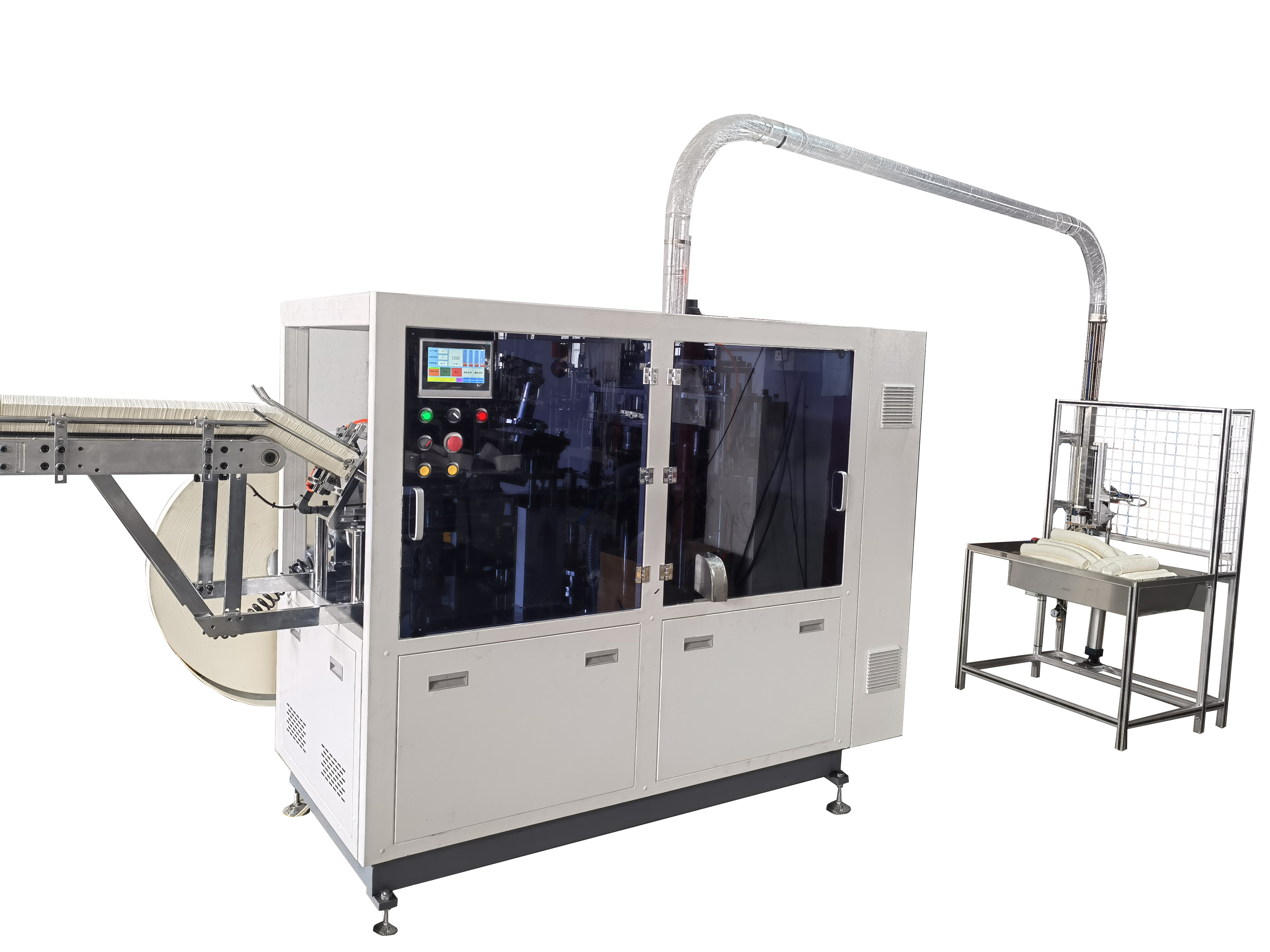

HN-SF160 High Speed Paper Cup Machine
Six-servo high-speed paper cup machine for 1oz-10oz cups and 150-160 pcs/min output targets.
HN-S120 Paper Cup Making Machine
110-120 pcs/min model for 1oz-16oz cups and stronger forming capacity.
Paper Cup Production Line
Planning page for printing, die cutting, cup forming and packing equipment.
Paper Cup Machine Price Factors
Understand model, mold, voltage, packing and supporting equipment factors.
Paper Cup Production Line Guide
Learn how printing, cutting, forming and packing work together.
Prepare a Clear Project Sheet for the HN-180
Exact utility, packing and weight details follow the confirmed cup, mold and final configuration. This checklist keeps the quotation discussion practical.
Send a cup drawing or sample, paper GSM, output target, voltage and destination country. HANNAI can prepare the relevant detail sheet for the confirmed machine configuration.
Request Detailed Parameter SheetBefore quotation, please prepare these details
- Cup size or sample photo
- Target production speed or daily output
- Paper material and GSM
- Factory voltage and destination country
- Whether you need supporting machines such as die cutting or packing equipment
