HN-SF160 High Speed Paper Cup Machine

A six-servo high speed paper cup machine for 1oz-10oz cups, designed for factories targeting 150-160 pcs/min with ultrasonic side sealing and hot-blast air support.

Request Quote WhatsApp Sales

Parameters

Key Specifications

Model	HN-SF160 High Speed Paper Cup Machine
Paper cup size	1oz-10oz
Speed	150-160 pcs/min
Control configuration	Six-servo configuration
Paper material	One-side or two-side PE coated paper
Suitable paper weight	160-300 gsm, +/-20 gsm
Voltage supply	380V or 220V, 50/60Hz; configurable according to destination
Cup dimension range	Bottom 30-58 mm, top 40-80 mm, height 30-100 mm
Working air source	0.6-0.7 Mpa; 0.8 m3/min
Side sealing	Ultrasonic and hot-blast air
Bottom knurling	Hot-blast air
Total power	18 kW
Net weight	Host 1700 kg; cup collector 100 kg
Host machine size	L2850 x W1260 x H1900 mm
Cup collector size	L900 x W800 x H1880 mm
Maximum installation size	L4800 x W1260 x H2350 mm

Advantages

What Buyers Usually Confirm

Six-Servo Control

Servo-driven stations support coordinated paper feeding, indexing, bottom feeding, cup transfer and collection.

High-Speed Output

150-160 pcs/min configuration for 1oz-10oz paper cup production projects.

Sealing Configuration

Ultrasonic side sealing with hot-blast air support for side sealing and bottom knurling.

Project Matching

Voltage, mold plan and supporting equipment can be discussed before quotation.

Product Photos

Machine Details & Project View

Real product photos help buyers understand the equipment structure before sending detailed requirements.

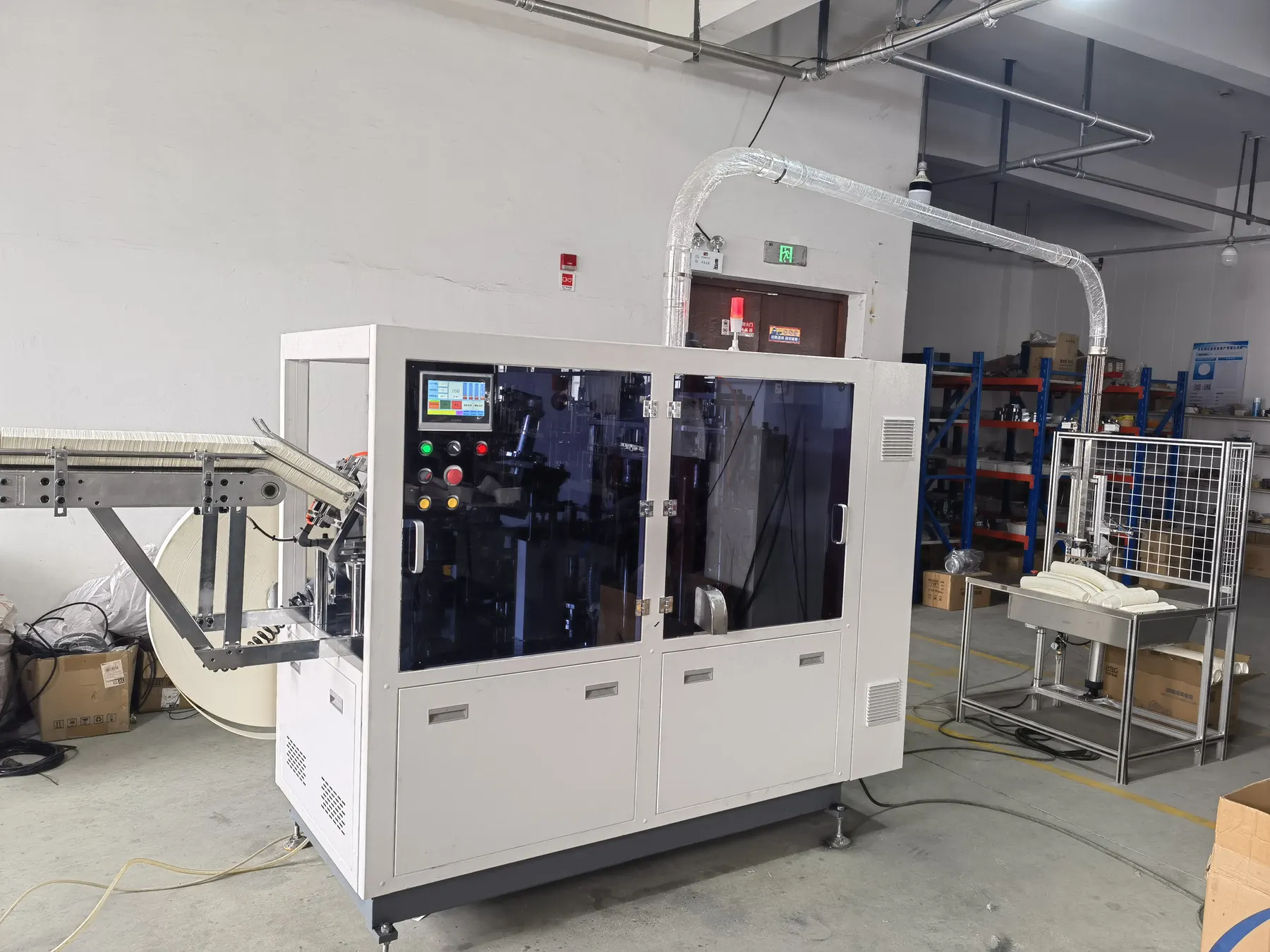

HN-SF160 six-servo high speed paper cup machine in workshop

HN-SF160 high speed paper cup machine front and collection system

High speed paper cup production workshop reference

Applications

Suitable Buyer Projects

Coffee & Beverage Cups

For 1oz-10oz paper cup projects where cup dimensions fit the stated range.

Food Service Supply

For packaging suppliers and factories producing common beverage and takeaway cups.

Factory Capacity Upgrade

For projects that need a higher output target than standard entry machine configurations.

Custom Cup Programs

Send cup drawings or samples so the mold and machine configuration can be discussed.

Buyer FAQ

Questions Before Quotation

What speed can HN-SF160 reach?

The referenced configuration is 150-160 pcs/min. Actual output should be confirmed with cup size, material and mold plan.

What cup range can it make?

The stated cup range is 1oz-10oz, with a bottom diameter of 30-58 mm, top diameter of 40-80 mm and height of 30-100 mm.

Does it use servo control?

Yes. The HN-SF160 is supplied as a six-servo configuration.

Can it make PLA or other materials?

The supplied specification confirms one-side or two-side PE coated paper. Please send material details first so other material matching can be confirmed before quotation.

What is needed for a quotation?

Please send cup dimensions, paper GSM and coating, target output, voltage, destination country and any supporting equipment needs.
