HN-M100 Automatic Paper Cup Machine
An automatic paper cup machine for 1oz-9oz cups, suitable for buyers who need a practical forming machine for factory supply and startup projects.
Key Specifications
| Model | HN-M100 Automatic Paper Cup Machine |
|---|---|
| Paper cup size | 1oz-9oz |
| Speed | 100-110 pcs/min |
| Paper material | One-side or two-side PE coated paper |
| Suitable paper weight | 160-300 gsm, +/-20 gsm |
| Voltage supply | 380V 60Hz; adjustable according to local voltage |
| Cup dimension range | Bottom 35-70 mm, top 45-90 mm, height 32-135 mm |
| Working air source | 0.4-0.6 Mpa; 0.4 m3/min |
| Side sealing | Ultrasonic |
| Bottom knurling | Hot air system |
| Total power | 6 kW |
| Net weight | 1800 kg |
| Host machine size | L2100 x W1200 x H1800 mm |
| Cup holder size | L900 x W600 x H1500 mm |
What Buyers Usually Confirm

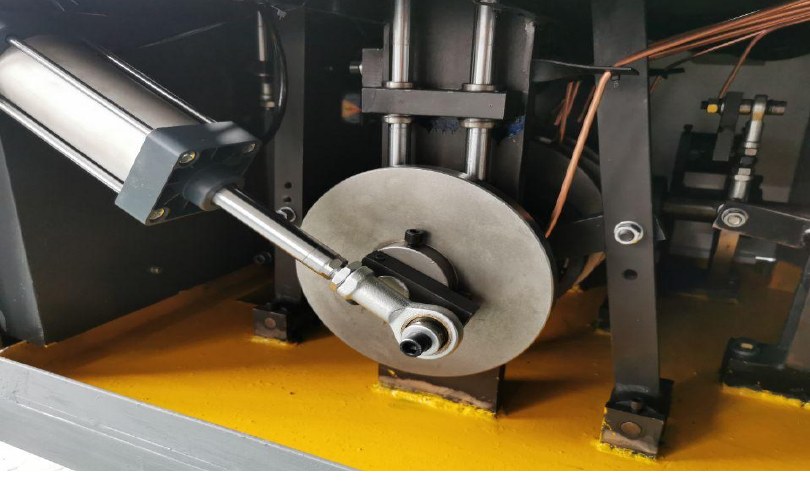

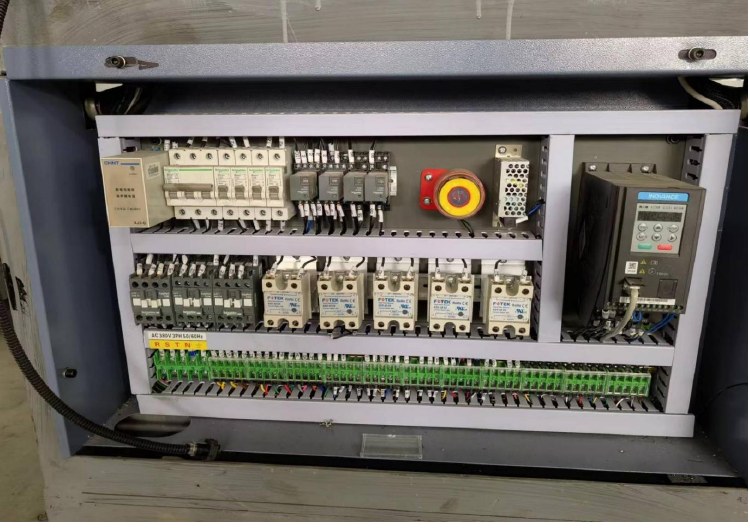

Machine Details & Project View
Real product photos help buyers understand the equipment structure before sending detailed requirements.
Suitable Buyer Projects
Questions Before Quotation
HN-M100 is positioned for practical 1oz-9oz production, while HN-S120 is a higher-speed option with a wider cup range.
For larger cups, please send your cup size first so we can recommend a suitable configuration.
Please provide paper GSM and whether it is one-side or two-side PE coated paper.
Send cup size, target output, voltage and destination country through the inquiry page or WhatsApp.
Compare Related Equipment & Guides
Continue from this page to compare machines, understand the production line and prepare a clearer inquiry for quotation.
HN-S120 Paper Cup Making Machine
110-120 pcs/min model for 1oz-16oz cups and stronger forming capacity.
1oz-9oz Paper Cup Machine Solution
A practical machine selection guide for small beverage cups, sampling cups and takeaway cups.
Automatic Paper Cup Machine Guide
Learn how automatic cup forming machines are matched with cup size, output, material and factory conditions.
Paper Cup Mold & Cup Size Guide
Understand cup dimensions, mold discussion, paper material and machine range before requesting a quotation.
Paper Cup Manufacturing Process Guide
Understand the practical workflow from paper material and cup blanks to forming, inspection and finished-cup packing.
Before quotation, please prepare these details
- Cup size or sample photo
- Target production speed or daily output
- Paper material and GSM
- Factory voltage and destination country
- Whether you need supporting machines such as die cutting or packing equipment
