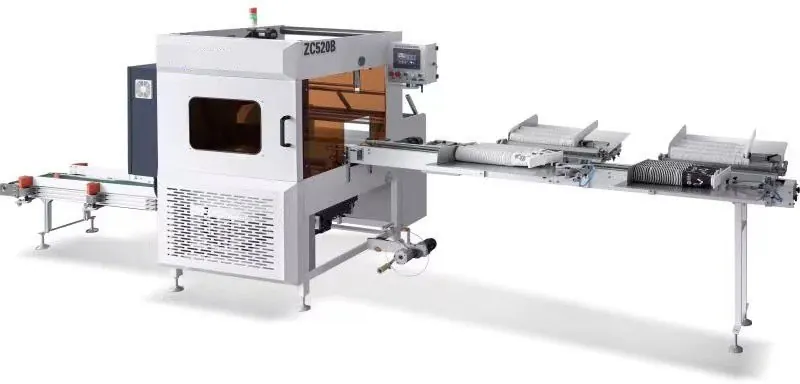

Paper cup line buffer sizing determines how much temporary accumulation is needed between operations and whether the line can recover after a stop. A buffer buys time; it does not create packing capacity. Both free space during an outage and spare downstream capacity after restart must be calculated.
The examples below illustrate flow arithmetic only. They are not conveyor designs, approved stack heights or capacity guarantees. Confirm cup stability, hygienic handling, guarding, transfer geometry and control logic with the equipment integrator before adopting any accumulation arrangement.
Decision worksheet
| Question | Calculation or evidence | Decision |
|---|---|---|
| How long can input continue? | Free cup capacity divided by inflow | Maximum covered stop |
| How much accumulates? | Net inflow times stop duration | Required free space |
| Can the buffer clear? | Downstream rate minus upstream rate | Recovery margin |
| Is storage usable? | Handling and traceability trial | Approved capacity |
| What if it fills? | Controlled stop and restart logic | Prevent spill or mixing |
Define the buffer boundary in cups
Identify the exact incoming and outgoing count points. Translate stacks, lanes or containers into cups using verified counts rather than an assumed average. Distinguish installed capacity from usable capacity: guide clearances, unstable stack positions, rejected product and reserved separation space reduce what can safely be used.
Record normal occupancy and free capacity separately. A nominally large buffer that starts almost full offers little protection against a downstream stop. Define permitted product identity, cleaning state and lot separation. Do not mix cups from different quality statuses simply because space is available.
Calculate accumulation during a defined event
For constant rates, accumulation equals incoming rate minus outgoing rate, multiplied by duration. During a complete packing stop, the outgoing rate is zero. Use the incoming accepted-cup rate at this boundary, and keep minutes and hours consistent. For changing rates, calculate each interval separately and add the net counts.
In an illustrative case, forming feeds 80 cups per minute and the packer stops for 4 minutes. The buffer receives 320 cups. If usable capacity is 500 cups but 250 are already present, only 250 spaces are free; input can continue for about 3.13 minutes before reaching the boundary.
Calculate recovery after the downstream restart
Suppose the packer can subsequently accept 100 cups per minute while forming continues at 80. The net clearing rate is 20 cups per minute, so 320 accumulated cups require 16 minutes to clear. This assumes uninterrupted rates and compatible transfer; verify those assumptions rather than using the arithmetic as a guarantee.
If downstream capacity equals upstream capacity, the buffer never clears while both continue at those rates. If another outage arrives before recovery, occupancy ratchets upward. Evaluate stop frequency and recovery time together. A buffer selected only from the longest individual stop can still overflow during repeated shorter events.
Check physical handling and control states
Demonstrate entry, accumulation, release and recovery using the intended cup and stack geometry. Watch for rim deformation, scuffing, tipping, compressed stacks, blocked sensors and loss of count. Do not assign an approved maximum stack height from this calculation; establish it through the relevant handling assessment.
Agree full, nearly full, empty and fault responses with the controls integrator. Check which equipment stops, which product remains in transit and how counting resumes. Include safe access, cleaning and lot clearance in the layout review. Manual overflow storage requires its own controlled handling and identity method.
Choose the intervention from the evidence
If the calculation fails because outages are long, improve downstream reliability or define a controlled upstream stop. If recovery capacity is inadequate, review sustained packing capability before purchasing more storage. If the physical buffer damages cups, extra theoretical capacity is irrelevant until handling is corrected.
Send HANNAI the measured inflow, outage timeline, normal occupancy, packing recovery rate and cup drawings. Request a coordinated transfer and controls review. Validate the chosen arrangement with representative stop sequences, record the peak occupancy and confirm that the buffer returns to its normal operating range.
