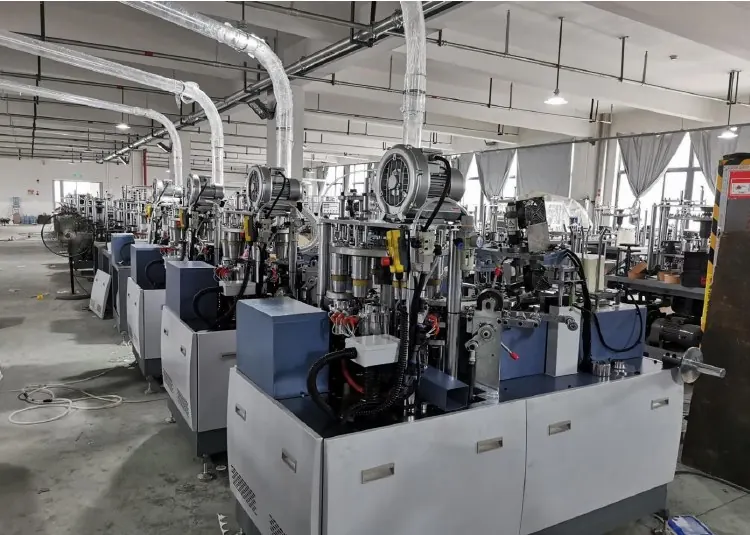

A paper cup air pressure transient can be too brief to diagnose from an occasional glance at a panel gauge. If an actuator hesitates only when another demand occurs, a time-aligned pressure record can help locate the event. The logger must be fast enough for the question and connected at the relevant point.
This is a measurement-planning guide for qualified maintenance personnel. Use pressure-rated instruments, approved connection points and the installed equipment instructions. It does not prescribe a universal sampling rate, minimum pressure or receiver size.
Diagnostic decision table
| Record pattern | First comparison | Important limitation |
|---|---|---|
| Supply and branch dip together | Shared supply event | Synchronize the measurements |
| Branch dips while supply remains steady | Local restriction or demand | Confirm sensor locations |
| Gauge looks steady but logger shows dips | Display and acquisition response | Check filtering and sample interval |
| Pressure recovers but motion remains delayed | Actuator and control sequence | Pressure alone does not prove motion |
State the event and select the locations
Identify the exact production symptom and the cycle stage where it occurs. Record the machine recipe, active pneumatic consumers and any shared equipment running nearby. An instruction to log the compressor pressure is too broad if the complaint concerns a short event downstream of a local regulator.
Mark the proposed upstream and point-of-use sampling locations on a branch sketch. Include filters, regulators, hoses, valves and any receiver between them. Choose locations that answer whether the loss begins in the shared supply or in the local path. The pressure at a remote header cannot be assumed to represent a cylinder port.
Match the measurement chain to the event
Have the instrument specialist confirm pressure range, response time, acquisition interval, filtering and data-logging behavior. A high displayed update rate does not prove that the complete measurement chain captures a short dip. Conversely, a rapidly sampled slow sensor can produce many points without resolving the event.
Record the settings and keep the raw time series where available. Do not smooth away the feature being investigated or report an isolated minimum without its surrounding trace. If the event duration is unknown, use a suitable approved exploratory measurement and refine the setup with specialist guidance rather than guessing a universal sampling frequency.
Install the sensors through the safe procedure
Isolate and depressurize the relevant section before installing approved rated fittings and sensors. Account for stored pressure and possible actuator movement. Secure leads and sampling arrangements away from motion and product handling, then restore guards before the operating trial. Do not loosen a live fitting to create a measurement port.
Document any added tubing or adapter volume that could affect the measured response. Use the instrument instructions for connection and calibration checks. If the logging arrangement changes the branch behavior substantially, the result may describe the test setup rather than normal production. Review this limitation before interpreting an apparent improvement or a new dip.
Align pressure with the production sequence
Use a common time reference for multiple loggers and existing machine event records where practical. Identify the cycle, valve command or other approved observable marker associated with the complaint. Comparing traces that are shifted in time can falsely suggest that one location caused an event at another.
Repeat the relevant demand condition and preserve normal variation across cycles. Record whether the pressure event occurs before, during or after the observed hesitation. A local pressure dip may guide investigation toward restriction or demand, but does not alone establish a failed valve, undersized pipe or inadequate compressor. Keep the motion and electrical-control evidence separate.
Choose the correction from the located cause
Review the trace with the responsible supplier and compare it with the installed component requirements. Check the relevant branch condition before changing a regulator setpoint or adding storage. A higher static pressure can conceal a restriction while introducing a different operating condition elsewhere.
After an authorized correction, repeat the same location, acquisition settings and demand sequence. Report the pressure trace and actual actuator or production outcome together. Send HANNAI the branch sketch, instrument setup and synchronized event record so the next step is based on where and when the pressure changes, not a single photograph of a gauge after the event has ended.
