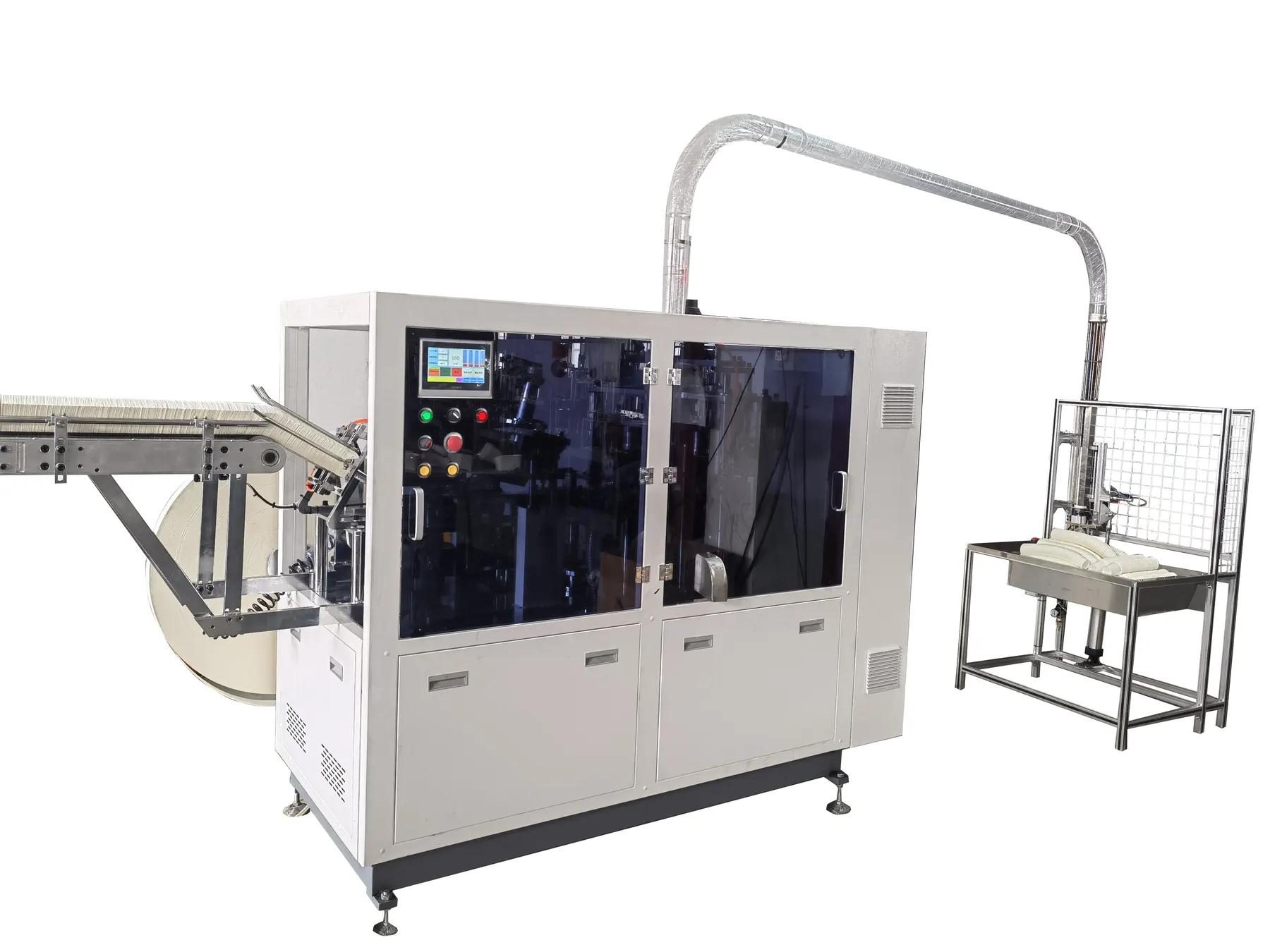

Paper Cup Machine Emergency Stop and Safety Guard Verification Guide

Paper cup machine emergency-stop and safety-guard verification is a controlled safety task, not a production-speed adjustment. An emergency stop, guard switch or reset circuit can appear normal at the operator panel while a damaged actuator, loose connector, incorrect restart sequence or unauthorized bypass leaves the protected function unreliable. Verification therefore needs an approved test plan, qualified personnel and evidence from every relevant access point.

Define the safety function before testing it

Start with the delivered electrical drawings, safety-device list, machine manual and site risk assessment. Identify every emergency-stop pushbutton, movable guard, interlock actuator, reset control and safety-related output included in the actual configuration. Record the device location and the hazardous motion or energy it is intended to control. A generic checklist cannot replace the machine-specific design.

The related sensor and interlock troubleshooting guide helps separate normal process sensors from protective devices. Treat safety devices as a separate verification scope: changes to wiring, controller logic, stopping behavior or restart logic require authorization from the responsible safety or controls specialist.

Prepare a test that does not create a new hazard

Schedule the test during controlled downtime. Remove product, tools and loose items; brief everyone involved; establish an exclusion zone; and define who operates, who observes and who authorizes the restart. Use the supplier’s permitted test condition. Never ask a person to stand inside a guarded area, defeat an interlock or approach moving tooling to see whether the circuit reacts.

Before applying power, visually inspect device labels, mounting, actuator engagement, cable protection, connectors and evidence of tampering. A guard that closes mechanically but does not consistently engage its actuator should be corrected before a powered test. Do not tape, clamp, bridge or hold a safety input in the made state.

Use a device-by-device evidence table

Verify stop, reset and restart as separate behaviors

For each device, place the machine in the test state authorized by the manual, actuate the device from outside the danger zone and record the resulting machine state. Confirm the expected hazardous motion does not continue or initiate. The exact stopping category, response time and energy-isolation behavior depend on the delivered design and must be judged against its approved documents rather than an assumed universal value.

Next, check reset behavior separately. Releasing an emergency stop or closing a guard should not be confused with permission to restart. Confirm that the prescribed deliberate reset is required and that a production command is still needed where the design specifies it. If motion resumes unexpectedly, stop the test, isolate the machine and escalate the finding.

Investigate intermittent devices without bypassing them

An intermittent interlock may be caused by guard sag, loose mounting, actuator wear, cable movement, contamination, connector damage or an input that changes with vibration. Preserve the first HMI or controller event, device identity and guard position. A short safe video of the external device and indicator can be more useful than repeated resets.

Electrical testing inside the cabinet must be performed only by qualified personnel under the site’s electrical-safety procedure. Compare input and safety-controller diagnostics with the drawing, but do not force an input to keep production running. The technical documentation checklist explains which drawings and device records buyers should retain.

Close the test with traceable evidence

Record the machine model, configuration, date, personnel, test condition, device list, result, fault evidence, corrective action and approval. Attach updated photographs only if site rules allow them. A pass should mean every listed function met the documented expectation; it should not mean that the machine happened to stop once.

After repair, repeat the affected function and the associated reset/restart checks. Restore all guards and covers, remove test equipment, clear the area and complete the authorized restart. Keep the report with the machine’s maintenance and change-control records.

Frequently asked questions

Can an operator test an emergency stop during normal production?

Only under an approved site procedure and safe test condition. A planned test should protect people, product and equipment and should not be improvised while hands, tools or unstable material are near the machine.

Is closing the guard enough to let the machine restart?

Not necessarily. The required reset and restart sequence depends on the delivered safety design. Unexpected automatic motion after guard closure is a serious finding that should be isolated and reviewed.

Can a faulty guard switch be bridged until a spare arrives?

No. Bypassing a protective device can expose personnel to hazardous motion and can invalidate the machine’s safety basis. Isolate the machine and follow the approved repair and validation process.

What information should be sent to the machine supplier?

Send the machine model, electrical drawing revision, device location and label, exact sequence, first alarm, photographs of external mounting, authorized diagnostic evidence and any recent maintenance or wiring change.
