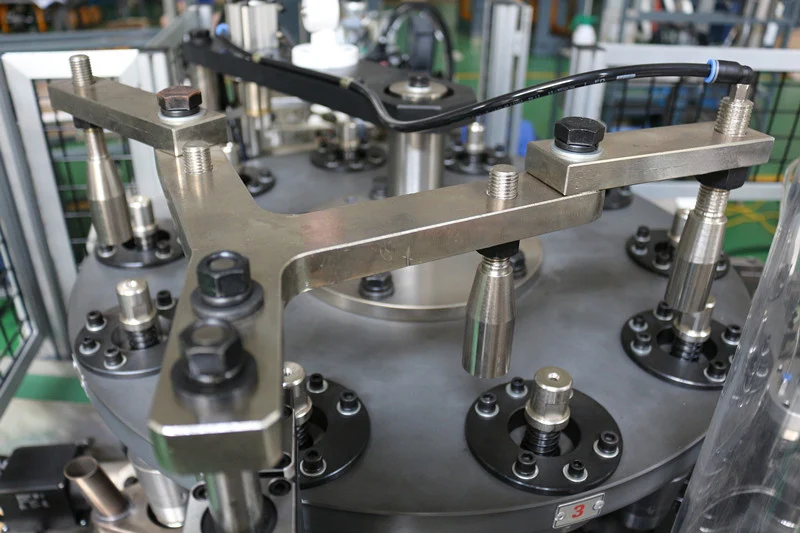

A pressure or vacuum switch can show a plausible number without proving that the machine receives the intended ready signal. Before changing a setpoint, establish what the device measures, what the display is showing and which output the controller uses.
Paper cup machine pressure switch verification is a configuration check, not a search for a universal pressure value. Final setpoints, hysteresis, filters and response requirements are to be confirmed for the installed circuit and machine sequence.
Identify the measurement and the signal
Record the complete component code, circuit reference, measurement location and the function assigned to the input. A switch may monitor the air supply or a particular vacuum branch; neither observation automatically establishes conditions at every actuator or suction cup.
Qualified personnel should identify the output channel and its relationship to the controller from the approved drawings. PNP or NPN describes the output circuit arrangement. Normal or reversed output, hysteresis mode and window mode are separate configuration questions; similar front panels do not establish compatibility.
Keep display functions separate from switching functions
Peak/bottom indication and response settings serve different purposes. A retained extreme value is useful historical information; it is not the current pressure or, by itself, proof of the output transition that occurred during a cycle. Where current and peak values appear together, identify the display label in the photograph instead of treating both numbers as the same reading.
| Function to identify | What it describes | Evidence needed |
|---|---|---|
| Current measured value | Pressure at the documented sensor location | Unit, range, measurement mode and observation time |
| Peak or bottom indication | A recorded extreme under the device's display function | Display label and capture/reset conditions |
| Setpoint and hysteresis or window limits | The configured switching relationship | Exact output mode, limits and normal/reversed behavior |
| Digital filtering | Supported processing of the measured signal | Effect on the display and output in the exact model manual |
| Output delay | Supported timing of a switch response | Delay function and the controller timing requirements |
| Controller input and program use | How the received signal affects the machine sequence | Input identity, required transition and applicable logic documentation |
SMC's ZSE20(F)/ISE20 manual documents these functions separately. For that family, digital filtering affects the pressure display and switch output, while the output-delay setting targets the switch output. It is a component example; it does not establish the brand, functions or settings installed on a particular HANNAI machine. Use the exact component manual before interpreting a display or changing a parameter.
Read the pressure and signal evidence together
For an approved observation or test, retain the machine state, sensor indication, output indication, controller input and relevant event time. Describe any gaps in the record. A screenshot taken after a stop may not represent the conditions when the input changed, and a held peak cannot reconstruct the complete pressure history.
An output indicator and the controller's received input are different observation points. A mismatch is a reason for qualified investigation of the documented signal path, not permission to bridge the input. Likewise, a plausible reading at the supply cannot clear a downstream delivery problem. The vacuum pickup overview helps identify which handling event needs evidence.
Preserve the approved configuration before a change
Record the part number, units, output channel, switching mode, thresholds, supported timing functions and the approved reference revision. State whether a value was read from the installed device or copied from an older record. Keep those sources distinct.
Do not adjust a threshold to conceal low supply, leakage, a restricted branch or an unexplained process stop. Electrical access, tubing changes and live measurements require qualified personnel and the site's isolation or authorized diagnostic procedure. A factory reset or zero adjustment is a model-specific operation, not a general cure for an alarm.
Ask the machine designer or authorized specialist to determine any change from the circuit's required function and the relevant evidence. A component's automatic setting feature does not replace approval of the machine application. The technical documentation checklist identifies the records needed for that discussion.
Verify the intended response, not only the display
After authorized work, follow the documented function test and verify the required signal transitions and machine response. Do not create an unplanned loss of pressure or defeat a protective function to test an input. Safety-related monitoring requires the approved machine safety design and validation process.
Record the final configuration, test conditions, observed response and approval. Then complete the required production checks with identified material and tooling. If the cause remains uncertain, retain that limitation rather than reporting a successful reset as proof of repair.
Discuss the installed configuration with HANNAI using the machine identity, complete switch code, circuit reference and fault timeline. For a new machine project, confirm the monitoring and documentation scope before ordering.
Frequently asked questions
Can a peak reading replace a current-pressure observation?
No. First identify the display function and its capture conditions. An extreme value does not establish the full pressure sequence or output behavior.
Are PNP/NPN and normal/reversed output the same choice?
No. One concerns the output circuit arrangement; the other concerns its configured switching behavior. Verify both against the installed wiring and intended function.
Are hysteresis and delay interchangeable fixes for chatter?
No. They address different aspects of behavior. Investigate the actual pressure variation and signal requirements before an authorized change.
Can replacement settings be copied because the front panels look alike?
No. Confirm the complete device code, measurement range, units, available modes and approved machine function first.
