Paper Cup Machine Vacuum Generator and Ejector Silencer Maintenance Guide

Restore stable vacuum pickup by checking ejector air supply, nozzle passages, silencers, tubing, cups and signal timing with measured evidence.

The Venturi vacuum generator, ejector nozzle and exhaust silencer is a small part of a larger operation sequence, but it can influence weak pickup, delayed release, high compressed-air demand or intermittent blank loss. A reliable diagnosis should begin with repeatable equipment findings rather than a replacement guess. This guide gives maintenance teams a structured way to isolate the state while preserving the delivered equipment references.

A practical paper cup machine vacuum generator maintenance review should connect the visible symptom with the command, physical response and finished output. Final limits, parts and adjustments remain configuration-specific; use the delivered pneumatic schematic, ejector documentation and authorized cleaning instructions instead of applying a universal value.

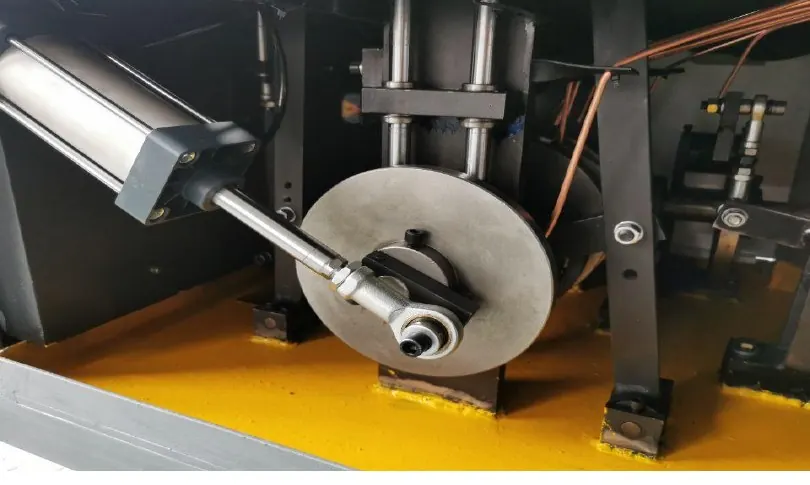

Paper cup machine detail used for vacuum generator ejector and silencer maintenance planning
Use the actual equipment identity and delivered documents when inspecting the Venturi vacuum generator, ejector nozzle and exhaust silencer. The image provides equipment context and does not define a universal assembly specification.

Build an identity map for the affected circuit

Document generator model, supply port, vacuum port, blow-off connection, silencer and the pickup circuit served. Mark when the concern appears during idle command, manual pickup, normal speed and the moment a blank is transferred. Include the operator observation, equipment state, substrate or job identity and the last known acceptable operation period. This prevents several different faults from being grouped under one general alarm or quality description.

Keep samples or videos in sequence and label the equipment position, direction and time. A pattern tied to one station, one direction, one speed transition or one substrate lot is more useful than a mixed collection of rejected output. Review the relevant context in the vacuum pickup system troubleshooting guide before changing a setting.

Compare vacuum behavior at defined points

Observed state Findings to collect Diagnostic direction
Vacuum is low at every pickup Supply pressure at flow, vacuum reading and exhaust sound Air supply, generator nozzle or silencer restriction
Vacuum starts strongly then falls Cycle trace, filter bowl state and tube collapse inspect Moisture, contamination or unstable supply
Only one suction cup releases late Branch restriction, cup lip state and blow-off timing Local tube, cup or inspect-valve issue
Air consumption rises Command duration, leakage test and generator duty document Continuous command, leak or wrong nozzle state
Silencer becomes unusually quiet or hot Exhaust comparison, contamination photo and pressure behavior Restricted exhaust or internal deposit

Control hazardous energy and preserve references

Apply the site lockout and isolation method for electrical, pneumatic, vacuum, thermal, gravity and stored mechanical energy that applies to this equipment. Verify the zero-energy state before guards, terminals, tubing, tooling or drive components are accessed. Hot surfaces and charged electrical parts may remain hazardous after the equipment stops.

Photograph connectors, tube routing, witness marks, adjustment positions, wiring labels and assembly orientation before disassembly. Qualified personnel should perform live electrical or pressure readings only when the authorized diagnostic method specifically requires them and appropriate controls are in place.

Inspect the assembly in its complete load path

Separate the generator from the suction cup by testing at defined points with authorized gauges and blanks. Inspect cracked tubing, loose fittings, porous cups, blocked filters and sensor timing before replacing the ejector.

Clean only by the specified method and preserve deposits, wear bands, damaged parts or filter debris when they may explain the event. Replacement parts must match the delivered identification and service requirements. A visually similar assembly can have different electrical, pneumatic, thermal, dimensional or substrate characteristics.

Compare command, response and finished output

Place the command findings beside the physical response: controller output, valve or drive state, sensor transition, pressure or temperature behavior, motion and final output. The sequence shows whether the assembly failed to receive a command, received it but did not respond, or responded correctly while another process variable created the defect.

Use calibrated or verified instruments appropriate to the delivered method. Document measurement location, instrument resolution, equipment state and repeated results. Avoid converting a single observation into a tolerance; acceptance criteria must come from authorized drawings, manuals, substrate data or an agreed known-good baseline.

Rule out interacting equipment and substrate causes

Inspect upstream preparation and downstream handling before closing the diagnosis. Substrate identity, contamination, alignment, lubrication, air or electrical supply, timing, load and recent maintenance can change how the assembly behaves. The compressed-air moisture and filtration guide provides a related system inspect that can prevent a local repair from masking the original source.

Change one controlled variable at a time and log the before-and-after outcome. If several adjustments are made together, a short improvement cannot be attributed to one cause, and the fault may return when speed, temperature, roll diameter or operation demand changes.

Choose corrective work from specified findings

Classify the finding as contamination, connection, wear, misalignment, supply, control, substrate or configuration. Then match the corrective action to the assembly documentation and the equipment supplier’s guidance. Do not bypass an interlock, increase a setpoint beyond its authorized range or modify a safety-related circuit to keep operation running.

Where the findings is incomplete, preserve the equipment state and send a compact findings pack for review. It should contain equipment and assembly identity, annotated photos, a sequence video, readings with locations, alarms, substrate or job data, recent service history and representative good and bad output.

Verify the repair in stages

Before power or pressure is restored, verify tools are removed, connections are secure, guards are reinstated and the work area is clear. Use the specified manual, jog or slow-cycle inspect first, then progress through small controlled operation stages while watching the original symptom and any secondary effect.

Verify vacuum build time, hold behavior, release time, missed-pick frequency and compressed-air response with labeled blanks at staged speeds. Do not release the equipment based only on one acceptable cycle. Document the parts or parameters changed, final observations, retained samples and the person authorized to return the equipment to operation.

Prevent recurrence with a traceable maintenance document

Add the confirmed inspection point to the maintenance plan with an objective method and a reference source. Trend the state by time, cycles or operation demand as appropriate, but do not invent a replacement interval. Assembly state, environment, substrate and equipment loading should determine the review frequency.

Link the maintenance document to alarms, operation samples and spare-part identity. This makes future troubleshooting faster and helps purchasing teams order the correct configuration instead of a visually similar substitute.

Frequently asked questions

Can a clogged exhaust silencer reduce vacuum?

Yes. A restricted ejector exhaust can reduce performance even when inlet pressure appears normal.

Should a metal tool be pushed through the ejector nozzle?

Not unless the assembly method explicitly permits it; scratching or enlarging a calibrated passage can change performance.

Does higher supply pressure always improve pickup?

No. Use the authorized operating range and diagnose flow, leakage and nozzle state instead of increasing pressure blindly.

Which findings is most useful for remote review?

Provide generator identity, circuit drawing, readings at defined points, command timing, exhaust state and a slow-motion pickup video.
