A paper cup measurement check standard is a stable reference or controlled sample used to monitor the measurement process over time. It should reveal changes in instrument, fixture, environment or technique before those changes are mistaken for production movement. An ordinary cup may be too unstable to serve as a long-term reference without qualification.
This article supports measurement assurance planning. It does not define a control limit, check frequency or reference artefact. A metrology specialist must select, characterize, protect and approve the standard and chart method.
Diagnostic decision table
| Planning question | Evidence | Control risk |
|---|---|---|
| Is the reference stable? | Characterization over time | Reference ageing looks like instrument drift |
| Does it challenge the right range? | Value and geometry near use | Check passes outside the working condition |
| Is handling controlled? | Storage and orientation rules | Damage changes the reference |
| Is the chart responsive? | Baseline and reaction rules | Warnings are ignored or overreacted to |
Choose a reference for the measurement process
Define the instrument, fixture, range and characteristic to be monitored. Select a durable artefact or controlled product reference that engages the important parts of the setup. A flat block may check a caliper but not reveal a cup fixture alignment problem; one standard may not cover every method.

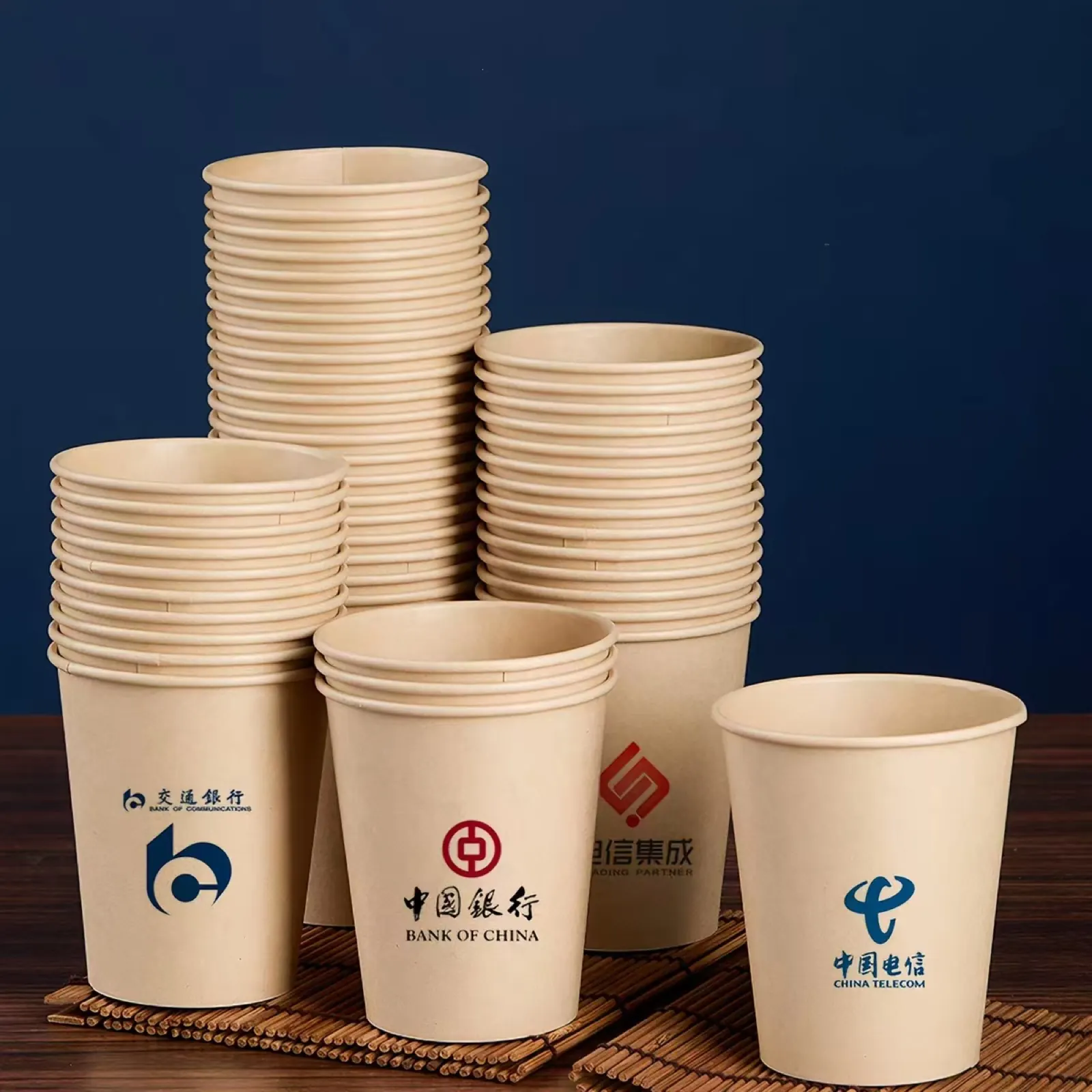

Assess whether a retained paper cup changes with humidity, handling or age. If it is used, characterize and protect it, and consider a reference group rather than one fragile specimen. Do not assign a certified value without appropriate calibration and traceability.
Establish baseline behavior under control
Collect check measurements across representative days, operators and normal environmental conditions after the system is judged stable. Follow one written setup, orientation and recording method. Retain individual results and events.
Use competent statistical guidance to set the chart and baseline. The baseline must not include known repairs, damaged standards or uncontrolled method changes. A wide limit created by mixing several methods may fail to detect drift. Conversely, limits based on too little or selected data can create repeated false alarms.
Schedule checks according to measurement risk
Place checks often enough to detect meaningful change before important product decisions accumulate. Consider use frequency, stability, handling and consequence. NIST measurement-assurance guidance links check frequency to the objective and uses control measurements to monitor current performance.
Define checks after startup, relocation, fixture change or suspected damage where appropriate. The schedule complements calibration and does not automatically extend a due date. Record skipped checks and equipment status; a blank chart must not be treated as evidence that the system remained controlled.
Respond to signals before measuring more product
Predefine warning and action rules, ownership and containment. When a signal occurs, stop affected conformity decisions as required, inspect the reference and setup, repeat only according to the rule and document findings. Do not keep rerunning until a point falls inside the limits.
Determine the last acceptable check and review product measured since then. Separate reference damage from instrument drift through suitable diagnostics. Preserve both the original signal and corrective evidence. Resetting the chart without identifying the cause erases information needed for interval and method improvement.
Review the standard and chart after change
Recharacterize or replace a worn reference through a controlled process. Review baselines after instrument repair, fixture modification, software updates or relocation; do not merge incompatible systems into one historical chart. Keep retired-reference identity and overlap evidence where feasible.
Send HANNAI the method, check chart, signal time and affected production identity when measurement drift may explain a machine-quality trend. This helps determine whether the process moved or only the observation system changed, without treating the check standard as a finished-product acceptance sample.
Related equipment and next checks
Review the HN-S120 paper cup forming machine and the related guide to control chart subgroup guide. The Engineering Notes archive connects these checks with wider machine planning.
Technical reference
- NIST SOP 30: process measurement assurance program — general reference; confirm applicability to the installed equipment.
Frequently asked questions
Can any retained paper cup be a check standard?
Only after its stability and fitness for the method are demonstrated.
Does a check standard replace calibration?
No. It monitors performance between required calibrations.
Should an out-of-control point be deleted after a passing repeat?
No. Retain the signal and follow the predefined investigation rule.
Can one standard monitor every measurement range?
Use references that exercise the relevant range, geometry and fixture.
