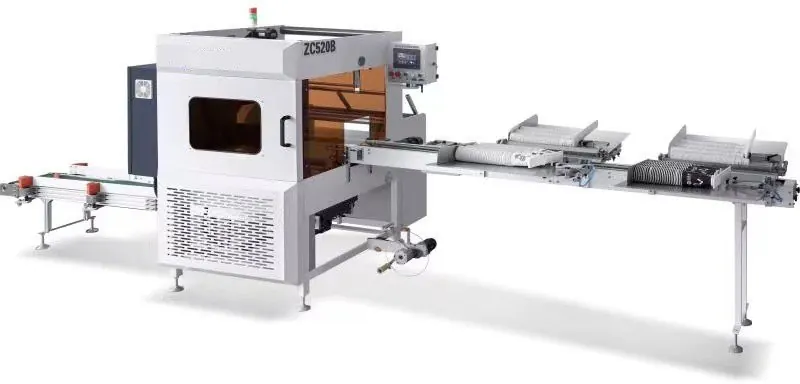

Paper cup packing machine sealing-jaw contamination can produce weak, wrinkled, scorched or intermittent package seals that look like a simple temperature problem. Raising the setpoint may make the defect worse and damage film. Diagnosis should connect the approved film, jaw surfaces, product presentation, controller evidence, contact sequence and finished-pack test before changing any recipe.
Define the seal defect precisely
Separate an open channel, low bond strength, wrinkle, cut-through, film pickup, scorched area, incomplete cut or displaced seal. Mark the defect’s location relative to the film edges, print, machine direction and cup stack. Record whether it appears continuously, at startup, after a stop, near a film splice or only with one product.
The broader counting and sealing troubleshooting guide connects batching to package release. Here, the focus is the jaw and seal interface after the correct product batch reaches the sealing position.
Confirm film and approved package conditions
Record film supplier, construction, thickness reference, sealable side, roll lot, storage and conditioning history. Confirm package dimensions, stack count, product orientation and the released machine recipe. A visually similar film may have a different sealing response or coefficient of friction.
Retain an acceptable pack, a defective pack and a film sample from the same event. Use the factory’s approved seal test rather than judging strength only by hand. If the film changed, compare it under the supplier-approved setup before adjusting several machine variables.
Build a seal-evidence table
| Seal pattern | Evidence to collect | Diagnostic direction |
|---|---|---|
| Weak band at one position | Defect map, jaw surface, support condition and temperature evidence | Look for local contamination, damage or uneven contact |
| Whole seal weak | Film identity, displayed values, heating status and dwell sequence | Separate material mismatch from incomplete heat or contact |
| Film sticks to jaw | Residue, film orientation, setpoint history and surface condition | Stop uncontrolled heating and inspect compatibility |
| Wrinkle crosses seal | Film tracking, product position, tension and jaw closing view | Correct presentation before changing temperature |
| Fault after a pause | Stop duration, first cycles, controller trend and film location | Review thermal and sequence behavior during interruption |
Inspect the jaw safely
Sealing jaws may remain hot and may move with stored pneumatic or mechanical energy after a stop. Apply lockout, verify isolation and allow the equipment to reach the safe condition defined by the supplier before access. Use heat-resistant protection and stored-energy controls required by the site procedure.
Under good light, inspect accessible sealing faces, covers or tapes where fitted, grooves, cutting elements, fasteners, insulation, supports and surrounding film path. Look for melted film, coating transfer, adhesive-like residue, paper dust, scratches, dents, loose hardware or an uneven replacement surface. Photograph before cleaning.
Clean without changing the jaw geometry
Use only the approved tool and cleaning material for the supplied jaw surface. Metal scraping, abrasive paper or an incompatible solvent can change surface finish, damage a coating or leave a contamination risk. Do not clean a hot moving jaw unless the manufacturer’s procedure explicitly provides a safe method.
Record the residue type, location and cleaning frequency. Repeated buildup may indicate film orientation, excessive heat, damaged surface, poor tracking or product interference. Cleaning restores visibility and contact; it does not correct the source automatically.
Evaluate temperature uniformity with an approved method
The displayed controller value is not necessarily the temperature at every point on the sealing face. Qualified personnel should check sensor integrity, heater connection, controller output and thermal evidence using a method suitable for the moving heated equipment. Measurement location, emissivity and response time can affect non-contact readings.
Compare repeatable positions after a defined stabilization condition, without reaching into a hazardous area. Do not publish or copy a universal temperature tolerance. The correct evidence depends on jaw design, film and supplier procedure. If one zone differs, inspect heating elements, sensor placement, mechanical contact and heat loss before changing the recipe.
Check alignment and product presentation
Even temperature cannot produce a flat seal if the jaws close on a wrinkle, cup edge, overfilled stack or misrouted film. Observe from outside guards as the product enters, film forms and the jaws close. Confirm guides, tracking and product containment before the seal position.
Use the film feeding and tracking guide when edge position or cut timing varies. Correct the earliest unstable point. Do not increase jaw pressure or heat to flatten a presentation fault.
Verify the correction with finished packs
After service, account for tools and cleaning materials, restore covers and guards, and follow the approved restart. Run controlled samples using the released film and product. Inspect seal location, width consistency, wrinkles, appearance and cut condition; then apply the factory’s defined seal-integrity or strength test.
Check samples across the seal width and through a representative sequence, including the permitted startup or restart condition. Record recipe, film lot, product, cleaning action, thermal evidence and test result. Release production only through the responsible quality process, not because one pack looks closed.
Frequently asked questions
Should the temperature be raised when a seal is weak?
Not automatically. Confirm film, sealable side, contamination, jaw contact, sequence and measurement evidence first. Excess heat can cause sticking, distortion or film damage.
Can the jaw be cleaned with a metal blade?
Only if the supplier explicitly specifies that tool and method. Unapproved scraping can damage the surface, alter contact and create a recurring defect.
Does the controller display prove both sides are uniform?
No. It reports the configured sensor and control loop. Local surface condition, heater faults and contact can still vary. Use the approved verification method.
What information supports remote seal diagnosis?
Provide film identification, package dimensions, recipe record, mapped defective packs, jaw photographs under isolation, alarm history, thermal method and finished-pack test results.
