A paper cup specification test method review prevents two parties from measuring different characteristics under the same label. Rim diameter, cup height, capacity, overlap and compression require defined surfaces, datums, conditioning and decision rules.
This guide supports technical agreement. It does not create product tolerances or override a signed specification. Buyers, suppliers and qualified quality personnel must approve changes. The final matrix should identify the governing document for every characteristic, record unresolved differences and assign an owner and due date before product release. Retain approval evidence with the current specification package.
Diagnostic decision table
| Specification gap | Clarification | Risk |
|---|---|---|
| Feature name only | Surface, location and datum | Different geometry is measured |
| Limit without unit | Unit and conversion rule | Numerical comparison is invalid |
| Method not identified | Procedure and revision | Labs execute different tests |
| Pass/fail unclear | Decision and uncertainty rule | Borderline results are disputed |
Build a characteristic-method matrix
List every drawing, artwork, material, functional and packaging requirement. For each row, identify the characteristic, purpose, sampling stage, method, equipment, unit and record. Link revisions and responsible approvers.

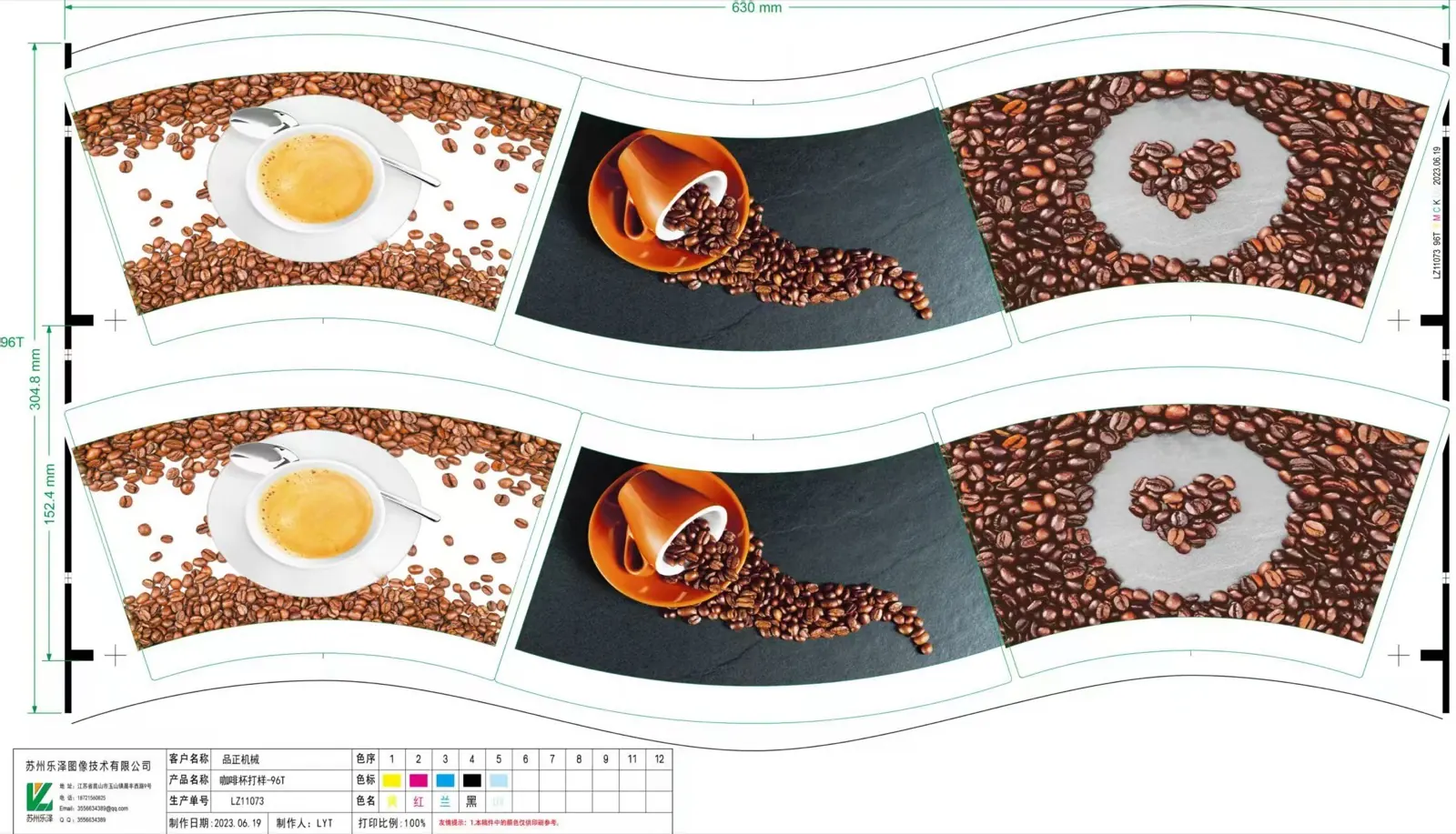

Remove duplicate labels that refer to different features. If “diameter” could mean rim outside diameter, internal lid-engagement diameter or body diameter at a height, give each a precise name. Use sketches for complex datums.
Define specimen state and preparation
Record cup age, conditioning, orientation, nesting history and any preparation. Define whether a test uses a finished cup, blank or board specimen. Destructive preparation should not change the characteristic before it is measured.
Align handling between supplier and customer. A warm cup measured at discharge and a conditioned cup measured after transport are not directly comparable without a study. Preserve sample identity and packaging condition.
Align equipment, calculation and reporting
Specify fixture, contact, loading or timing, zero procedure, calculation and rounding. Identify software fit or filtering when optical data are used. Record calibration and measurement capability relevant to the limit.
ISO 10012:2026 provides a measurement-management framework intended to support valid and reliable results. Use the approved standard and local procedures. A machine display or common tool name does not establish an equivalent measurement process.
Resolve acceptance and uncertainty rules
State whether individual, average or distribution requirements apply and how invalid tests are handled. Define any guard band or measurement-uncertainty treatment through competent agreement. Do not round a result into compliance unless the decision rule permits it.
Include units and conversion precision. When supplier and customer methods differ, run a controlled correlation or transfer study rather than adding an arbitrary offset. Record which method governs contractual acceptance.
Confirm agreement using shared samples
Use traceable matched samples spanning the relevant range. Compare raw results, setup photographs and interpretations. Resolve systematic differences before shipment or mass production rather than during a complaint.
Send HANNAI the matrix, drawing excerpts and method differences for equipment-related review. Clear alignment reduces false disputes while keeping product limits under buyer-supplier control.
Related equipment and next checks
Review the 850 roll die cutting machine and the related guide to dimensional consistency measurement guide. The Engineering Notes archive connects these checks with wider machine planning.
Technical reference
- ISO 10012:2026 measurement management systems — general reference; confirm applicability to the installed equipment.
Frequently asked questions
Is a feature name enough to define a test?
No. Define surface, datum, specimen state and procedure.
Can two labs use different methods with one limit?
Only through an agreed, demonstrated relationship or governing method.
Should rounding rules be documented?
Yes, especially for borderline conformity decisions.
Who approves specification changes?
Use the authorized buyer-supplier change process.
