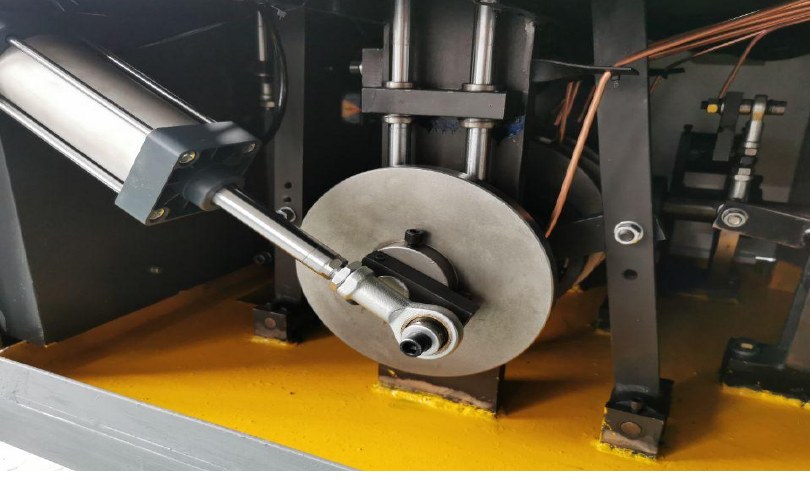

Paper cup dimensional inspection needs more than a list of nominal values. Paper cups can deform under handling, so the measuring method can influence the result. Define the feature, reference points, instrument and handling procedure before comparing lots. A precise-looking number is useful only when the team knows how it was obtained and which approved requirement it represents.
Begin with the approved drawing
Identify the cup drawing revision and the dimensions relevant to its application. Typical subjects to discuss include height, rim diameter, base geometry and any interface required for a lid, sleeve, stack or dispenser. The responsible designer or supplier must specify which features control acceptance and their agreed tolerances.
Do not convert a cup's advertised capacity into assumed geometric limits. Capacity labeling and dimensional conformity answer different questions. Review the cup mold and size guide when preparing the drawing and tooling information for a machine inquiry.
Define the method for each feature
Specify where the cup rests, how it is oriented and how the instrument contacts the part. Avoid squeezing a flexible wall while measuring. If a fixture or gauge is used, confirm that its method and condition are suitable for the approved drawing.
| Feature or task | Method detail to define | Information to record |
|---|---|---|
| Cup height | Support surface and top reference | Method, instrument and sample identity |
| Rim diameter | Exact measuring location and orientation | Readings and seam reference where relevant |
| Base geometry | Approved reference points | Drawing requirement and actual readings |
| Shape comparison | Handling and orientation | Observed variation and supporting photographs |
| Stack measurement | Stack quantity and applied handling condition | Stack method, sample lot and result |
Select instruments with suitable capability for the specified limits. Check their calibration or verification status under the site's measurement-control procedure. Extra decimal places on a display do not establish that the method can reliably distinguish acceptable from unacceptable cups.
Check that inspectors obtain comparable results
Have inspectors measure the same identified reference samples using the written method. Compare results and observe differences in placement or contact force. Resolve method disagreement before attributing all variation to production. Where a formal measurement-system study is required, use the site's approved procedure and competent personnel.
State any agreed sample conditioning before inspection. Material condition and handling history should be recorded when they matter to the comparison. Do not impose an invented universal waiting time or storage humidity on every cup; obtain the requirements for the actual material and specification.
Record results by sample rather than only entering a lot average. An average can conceal an individual out-of-limit reading. Keep the original readings, inspection date, lot, instrument reference and person responsible for the decision.
Connect dimensions with functional approval
When cups meet drawing dimensions but a lid still performs poorly, inspect the complete interface through the lid fit inspection guide. Dimensional conformity supports compatibility investigation; it does not replace closure and use tests.
For stacks, use the stackability inspection guide to define the relevant nesting and separation method. A dimension measured on one cup does not establish behavior across the whole stack or in a dispenser.
If a result falls outside an agreed limit, preserve the sample and confirm the method before making a production change. Keep suspect product under the quality procedure. Authorized personnel should compare tooling, material and setup records, then repeat the same measurements after an approved change.
Send HANNAI the approved drawing with the intended lid, packing and dispensing requirements when reviewing the machine range. A clear measurement plan makes the trial and acceptance discussion more concrete.
Frequently asked questions
Can ordinary calipers be used for every cup feature?
Use the instrument and method approved for that feature. Flexible walls, contact force and access can affect whether a particular tool produces useful results.
Should the lot average determine acceptance?
Follow the agreed sampling and acceptance plan. Preserve individual readings so an average does not conceal relevant out-of-limit samples.
Why identify the seam during measurement?
It gives a repeatable orientation reference and helps compare local shape observations. Its use should be defined in the method rather than left to each inspector.
Does dimensional approval replace a lid trial?
No. A functional cup-and-lid test evaluates engagement and use conditions beyond the dimensional checks alone.
