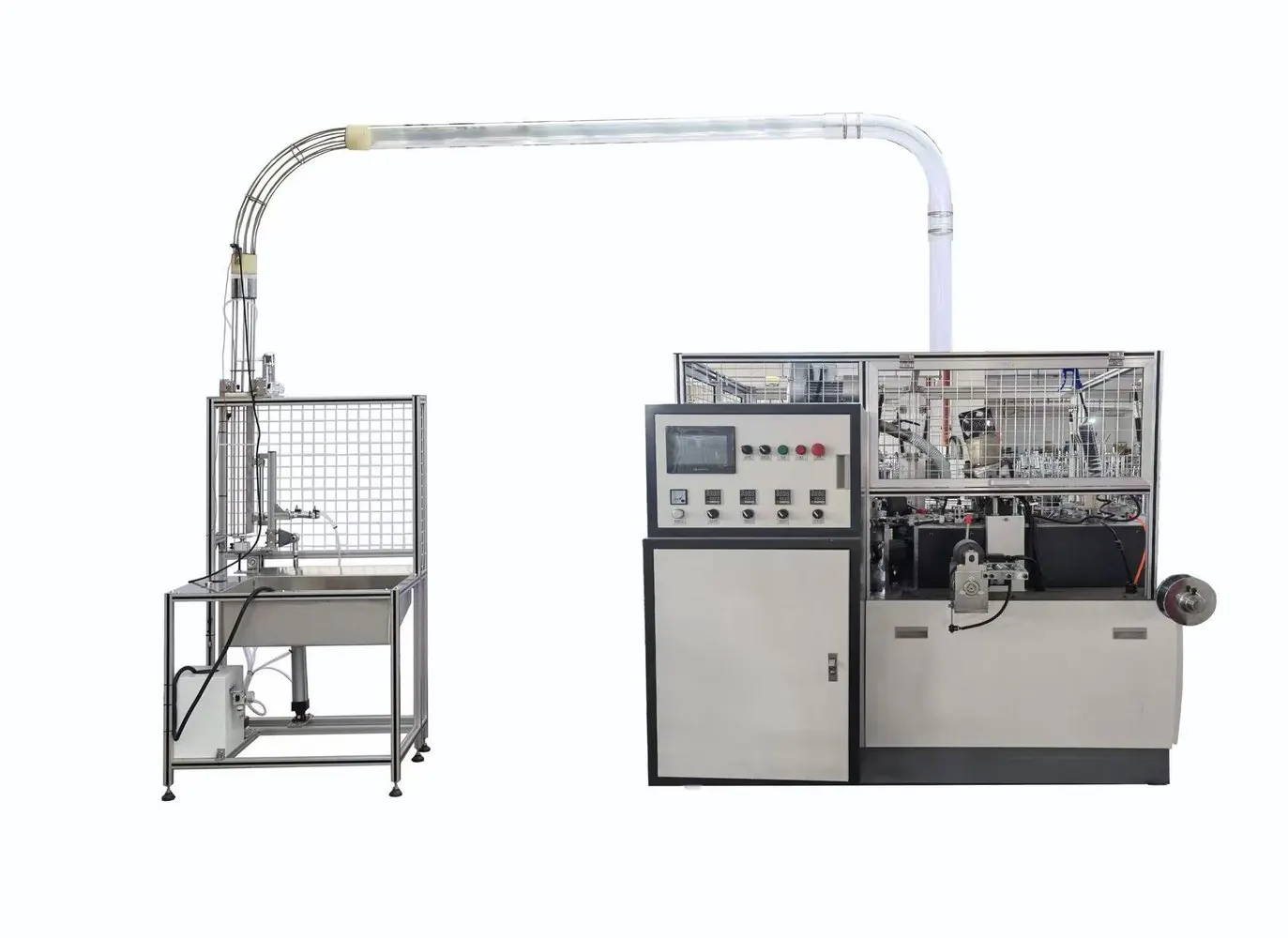

A paper cup machine condensate drain may stop removing liquid even while its power light remains on. Conversely, a drain stuck open can waste compressed air and contribute to pressure instability. Checking the drain as a separate component helps distinguish a discharge fault from insufficient drying or filtration.
The relevant drain may be on a receiver, dryer, separator or local filter rather than inside the cup machine. Identify the exact device and its location in the air system. Timer-operated, float and electronically level-controlled drains do not share one troubleshooting sequence.
Diagnostic decision table
| Condition | First distinction | Useful record |
|---|---|---|
| Liquid retained upstream | No discharge or excessive incoming load? | Drain indication and system duty |
| Air escapes continuously | Valve held open or normal brief cycle? | Duration and device mode |
| Alarm despite power indication | Blocked path or operating-condition fault? | Exact alarm and inlet condition |
| Drain works but machine air is wet | Another treatment stage problem? | Measurements beyond the drain |
Locate the drain in the actual system
Sketch the path from the condensate collection point through the drain to the approved collection or treatment destination. Record the model, supply requirements and installation orientation. Identify any upstream isolation and downstream restriction before operating a test function.
Check whether several drains share a discharge line. A problem at the common destination may affect more than one device. Do not assume a filter bowl on the machine represents the condition of the whole compressed-air network. Keep the wider moisture investigation separate from the component check described here.
Interpret indicators using the correct manual
Record power, valve and alarm indications together with the operating pressure and recent compressor duty. Some drains require a minimum pressure difference to discharge effectively. Others use a timer whose operation may not correspond to the actual liquid load. Identify the design before interpreting a flashing light.
BEKO documentation lists blocked lines, excessive condensate load and unsuitable operating conditions among possible alarm causes on its specified drain models. Those examples show why an alarm is not automatically an electrical failure. Use the installed model manual to determine which indications and test steps apply.
Inspect discharge routing without releasing stored air
Stop and isolate the relevant equipment, release stored pressure through the approved method and verify the safe state before disconnecting anything. Pressurized liquid and moving hoses can cause injury. Do not loosen a bowl or hose simply to see whether condensate is present.
Inspect accessible inlet and outlet paths for kinks, contamination, freezing risk and incorrect routing. Compare pipe dimensions, elevation changes and allowable backpressure with the drain instructions. Keep discharge directed to the designated containment system; this guide does not establish local disposal requirements for the collected condensate.
Service the correct failure boundary
Where the manual permits cleaning or a service-unit replacement, use the specified kit and sequence. Protect seals and sensing surfaces from incompatible chemicals. A bypass or a permanently open manual drain is not an equivalent repair because it changes air loss and condensate control.
Keep mechanical valve condition separate from the control command. If electrical diagnosis is required, use qualified personnel and the applicable isolation procedure. Record whether a test produces the expected valve action and actual discharge, rather than marking the unit repaired solely because its warning has cleared.
Verify removal and air retention during normal duty
After restoration, observe the approved test and representative operating cycles from a safe position. Confirm the discharge path remains contained, retained liquid does not accumulate abnormally and the valve does not continue passing air after the intended event. Use the device-specific acceptance criteria.
Then revisit air quality at the machine using the wider filtration and drying plan. A working drain does not prove a required pressure dew point or particle class. Send HANNAI the drain model, location sketch, indication history and post-service observations when deciding whether the remaining issue belongs to the drain, dryer or distribution system.
Related equipment and next checks
Review the HN-S120 forming machine and the related guide to compressed-air moisture and filtration. The Engineering Notes archive connects these checks with wider machine planning.
Technical reference
- BEKO BEKOMAT 8/9 operating and fault guidance — general reference; confirm applicability to the installed equipment.
Frequently asked questions
Does a power light prove that liquid is being removed?
No. Confirm the complete discharge event through the approved method.
Should the drain be left open to prevent buildup?
No. Restore the specified automatic operation.
Can blocked downstream piping cause an alarm?
It can; inspect the entire approved discharge route.
Does a working drain prove that machine air is dry enough?
No. Drying performance and air quality need separate verification.
