A paper cup cylinder auto-switch can indicate position inconsistently when its mounting point is near the edge of the magnetic detection window. Moving it until an LED lights is not a complete adjustment. The intended endpoint, repeatable switching region and PLC input response must agree.
This guide applies to cylinders with compatible magnetic pistons and cylinder-mounted auto-switches. It does not cover safety-rated position validation or authorize replacing a safety device with a standard reed or solid-state switch. Confirm the station function before adjustment.
Diagnostic decision table
| Symptom | Separate these causes | Useful record |
|---|---|---|
| LED flickers at the endpoint | Detection margin versus piston movement | Endpoint repeatability |
| LED stable but PLC input missing | Wiring or input compatibility | Switch and input states |
| Signal appears only during travel | Mounting position versus required dwell | Motion and signal timeline |
| Position changes after tightening | Bracket movement or wrong fit | Final secured switch location |
Define what the signal is supposed to prove
Identify the cylinder, the commanded direction and the input used by the machine sequence. Determine whether the switch confirms retraction, extension or an intermediate position. A signal label such as cylinder ready is insufficient without understanding the physical condition it represents.
Record the current switch model, bracket and cylinder series. Confirm electrical output compatibility before deciding the component has failed. Reed and solid-state switches can have different load and wiring requirements. Keep the existing interlocks active throughout diagnosis; forcing a PLC input conceals the very endpoint evidence needed to assess the station.
Confirm the mechanical endpoint first
Stop and isolate the machine, release pneumatic pressure and control stored movement under the approved maintenance procedure. Inspect mounting hardware, cylinder attachment and any accessible obstruction. Check that the station can reach its intended endpoint without binding or excessive impact. Do not use a switch adjustment to compensate for a mechanical short stroke.
If endpoint position varies, investigate the actuator and load through the appropriate procedure before seeking a larger detection margin. Record whether the variation occurs empty or with product. A stable sensor cannot make an unstable mechanism position repeatably, and moving the switch farther along the cylinder may cause a premature sequence transition.
Locate the permitted sensing window methodically
Use the installed switch instructions and the machine-approved safe positioning method. Determine the specified mounting position or supported indication for reliable detection. SMC guidance distinguishes operating range from hysteresis; the switch-on and switch-off positions need not be identical.
Record the observed transition behavior in each permitted direction rather than treating one LED event as the center. Position the switch within the manufacturer-recommended region for the required endpoint. Do not publish or reuse a universal offset distance: magnet arrangement, switch type and cylinder size change the applicable mounting range.
Secure the mounting and verify the input path
Tighten the mounting hardware only to its specified requirement and recheck position afterward. A bracket can shift during tightening, especially if an incompatible fastener or damaged groove is used. Route the lead without pulling the switch body and keep it clear of moving tooling.
With qualified electrical support and the approved test state, compare local indication with the PLC input and diagnostic display. If the local switch is stable but the controller misses events, investigate wiring, input filtering and the sequence timing. Do not increase time delays indiscriminately or bypass the input to keep production running.
Test repeatability with the normal load
Restore protective covers and run the authorized verification sequence. Compare multiple approaches to the endpoint with representative product load. Check that the signal occurs at the intended mechanical condition and remains valid for the sequence, not merely that a cycle eventually completes.
Record switch model, final bracket position, endpoint observations and the matching input state. If the fault remains dependent on temperature, cable motion or vibration, preserve that relationship for the next diagnostic step. Send HANNAI the cylinder identification and a guarded observation of the event; avoid reaching into the machine to demonstrate a sensor while it moves.
Related equipment and next checks

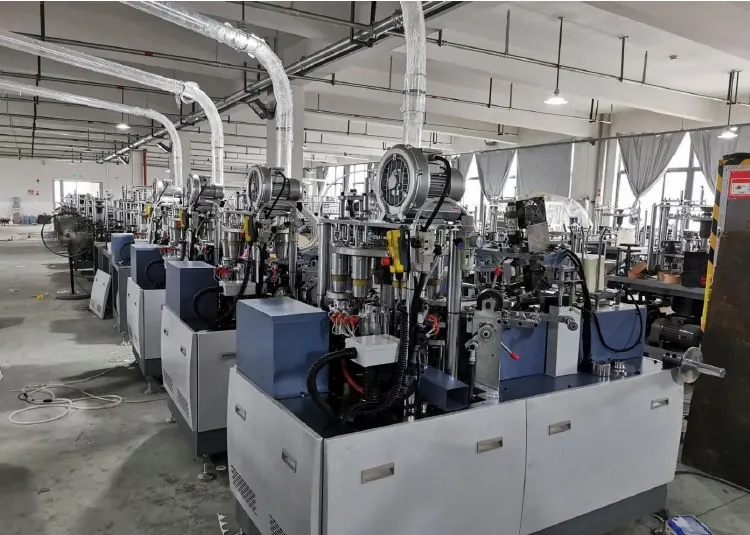

Review the paper cup forming stations and the related guide to sensor replacement compatibility. The Engineering Notes archive connects these checks with wider machine planning.
Technical reference
- SMC auto-switch handling and hysteresis guidance — general reference; confirm applicability to the installed equipment.
Frequently asked questions
Is the first LED-on position the correct setting?
Not necessarily. Follow the recommended detection region.
Can switch movement correct an incomplete stroke?
No. Resolve the mechanical or pneumatic cause first.
Are reed and solid-state switches interchangeable?
Only after confirming electrical and mechanical compatibility.
Can a standard auto-switch replace a safety sensor?
No. Safety functions require the approved safety architecture.
