Where a paper cup machine uses resistance heater bands, cartridges or contact heaters, an unstable temperature can result from poor physical contact, a displaced thermocouple, wiring deterioration, switching faults or heat loss—not only an incorrect setpoint. Inspection should connect the installed zone, measured response and cup result while respecting electrical and burn hazards.
Identify the exact heating zone
Review the electrical drawing, zone labels, parts list and process layout. Record heater type, rated identity, controlled surface, thermocouple or sensor type, controller channel, switching device, insulation and guarded area. Some machines rely mainly on hot air or ultrasonic sealing, so confirm that this contact-heating arrangement is actually fitted.
The heating and temperature control guide covers the complete process loop. This article focuses on component contact and measurement integrity within a resistance-heated zone.
Preserve the temperature symptom

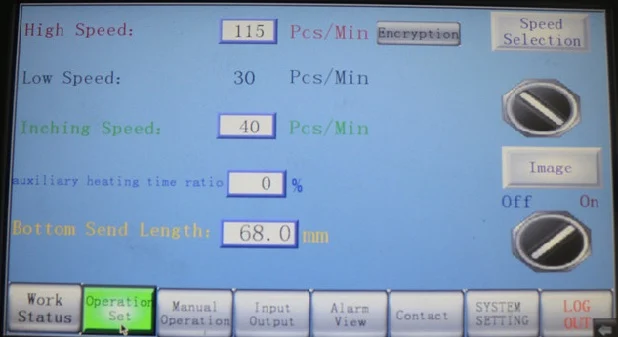

Record setpoint, displayed value, warm-up behavior, alarm, switching indication, machine speed, material, runtime and affected cup feature. Note whether the zone heats slowly, overshoots, cycles widely, reads implausibly, falls during production or changes after cleaning or component replacement.
Keep consecutive samples and identify startup, steady run and restart conditions. A stable number with changing seal quality may indicate poor heat transfer, while a changing number with stable product may involve sensor contact or electrical noise.
Use a heater-zone evidence table
| Observed pattern | Evidence to inspect | Diagnostic direction |
|---|---|---|
| Zone warms more slowly than before | Heater identity, contact, supply command, insulation and heat loss | Separate reduced output from poor transfer |
| Displayed value jumps or drops | Sensor seating, lead condition, connector, polarity and controller input | Review the measurement path |
| Controller is stable but product varies | Heated surface, pressure, position, contamination, speed and material | Inspect process contact beyond the sensor |
| Fault follows heater replacement | Part rating, dimensions, clamping, wiring and zone assignment | Verify compatibility and installation |
| One side shows weaker sealing | Heater coverage, surface contact, sensor location and mechanical alignment | Map uneven transfer to the physical zone |
Cool, lock out and verify electrical isolation
Follow the documented shutdown, allow the zone to cool, apply lockout and verify absence of hazardous voltage with the approved method. Control pneumatic or mechanical movement that could close a heated tool or trap a technician. Treat retained heat as a separate hazard after electrical isolation.
Only qualified electrical personnel should open terminals, measure resistance or insulation, or inspect switching circuits. Never work from the controller’s “off” indication alone.
Inspect heater contact and mechanical condition
Photograph installation references before removal. Inspect heater body, clamp, seating surface, contamination, corrosion, deformation, cracks, hot spots, leads and strain relief. Gaps or uneven clamping can reduce heat transfer and overheat the element locally.
Clean only by an approved method that will not damage the heater, sensor or tool surface. Do not hammer a band into place, add unapproved packing material or reuse a deformed element because it still shows electrical continuity.
Verify thermocouple placement and contact
Confirm sensor type, polarity, insertion depth or surface contact, retention and relationship to the heated process area. A sensor that has backed out may read surrounding air or a cooler support. Excessive force or an unsuitable substitute can damage the sensor or change response.
Inspect leads for sharp bends, abrasion, heat damage, mixed extension wire, loose terminals and routing near power conductors. Use compatible connectors and the supplied input type; do not compensate for a wiring error with a controller offset.
Compare electrical evidence with thermal response
Qualified personnel may check heater and sensor circuits using component-specific limits and safe procedures. Compare current, resistance, switching command or independent temperature evidence only where authorized. One measurement must not be treated as a universal acceptance value.
Intermittent contactors, solid-state devices, terminals or supply problems can imitate a weak heater. Conversely, correct electrical power does not prove good mechanical heat transfer to the tool.
Separate contact heating from airflow problems
If the same seal also depends on heated air, nozzle position or airflow, inspect that path independently. The hot-air nozzle and airflow guide covers restrictions and distribution. Do not raise a contact heater to compensate for a displaced air nozzle.
Also confirm material construction, coating, speed, pressure and contact position. The delivered sealing method and approved recipe remain the controlling references.
Prove the repaired zone through product
Reinstall guards and insulation, secure leads, account for tools and follow the documented warm-up. Record the time to ready condition, displayed behavior and permitted independent check. Stop if odour, smoke, discoloration or unstable switching appears.
Run labeled cups at controlled stages and inspect the affected seam or base using the agreed quality method. Retain first-off samples and document heater, sensor, connection and controller work before production release.
Frequently asked questions
Does electrical continuity prove a heater is healthy?
No. It does not prove correct rating, insulation, uniform output, mechanical contact, switching performance or heat transfer under production load.
Can a loose thermocouple be corrected with a temperature offset?
No. Restore approved placement and contact first. An offset can hide a changing measurement error and create an unsafe process condition.
Why can one side of a heated tool run differently?
Heater coverage, clamping, surface condition, sensor location, insulation, mechanical pressure or material presentation may be uneven.
What evidence helps remote troubleshooting?
Provide zone and component identity, warm-up trend, alarm history, isolated installation photos, qualified electrical findings and labeled product samples.
