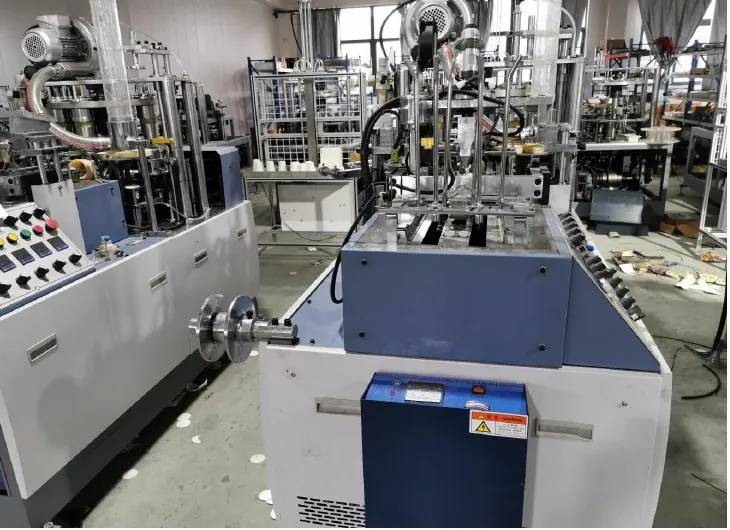

A paper cup machine maintenance redline records verified differences between controlled documents and the physical machine. Informal marks can preserve urgent field knowledge, but they must enter a review process before becoming the approved as-built drawing, parts list or setting record.
This guide supports document control and does not authorize field modifications. Use the site engineering change process and HANNAI documentation. Safeguard, electrical and software records require competent review. Define permitted redline formats, authors, reviewers, storage and expiry so temporary annotations cannot circulate as uncontrolled final documents. Control photographs, exported files and handwritten copies with the same attention to source and applicability. Set a review deadline and escalation path for open redlines. Confirm that contractors return marked documents and do not retain an unofficial master. Back up approved digital sources and restrict editing authority. Record review comments and final disposition for durable traceability across responsible teams.
Diagnostic decision table
| Redline control | Required evidence | Weak practice |
|---|---|---|
| Source | Document number and revision | Screenshot only |
| Change | Exact location and reason | Updated in field |
| Verification | Physical check and responsible role | Technician memory |
| Disposition | Approve, reject or investigate | Keep marked copy forever |
Start from the controlled source
Identify document number, title, revision, machine applicability and page or software object. Confirm the source was current when work began. Retain an unaltered original and create a traceable working copy.
Do not mark a screenshot or extracted page without source identity. Similar machine drawings can differ after field revisions. State the exact machine or population covered by the observation.
Record field evidence precisely
Show the affected symbol, wire, terminal, part, dimension, parameter or text. Add date, author, work order, reason and supporting photographs or measurements. Use standardized colors or markup conventions.
Separate an observed as-built difference from a proposed change. If the physical machine is unsafe or unauthorized, escalate immediately; the redline itself does not approve continued operation.
Review technical and downstream impact
Verify the field condition independently where consequence warrants it. Review safety, function, product quality, spares, training, software, maintenance tasks and other documents. Determine whether the machine, document or both need correction.
Check cross-references so one wiring update does not leave an outdated I/O list or parts record. Preserve rejected and superseded redlines with their disposition.
Issue the approved revision
Incorporate accepted changes into the controlled master using the document process. Record revision description, approval, effective date and machine applicability. Validate readability and references before release.
Withdraw or clearly mark superseded copies at workstations, shared drives and contractor packages. Do not rely on users noticing a new filename. Communicate changes to affected roles.
Audit temporary redlines and field use
Review open redlines by age, risk and affected machine. Confirm approved documents match a sample of physical installations. Track repeated differences that indicate weak commissioning or maintenance change control.
Send HANNAI the delivered document identity, machine serial context and verified difference when supplier clarification is required. Never include passwords or private access information in a redline package.
Related equipment and next checks
Review the HN-M100 automatic paper cup machine and the related guide to paper cup machine technical documentation checklist. The Engineering Notes archive connects these checks with wider machine planning.
Frequently asked questions
Does a redline approve a field change?
No. It records evidence for technical and document review.
Should the original document be overwritten?
No. Preserve the controlled source and revision history.
What if several machines differ?
Record applicability and verify each relevant configuration.
When can a redline close?
After disposition and controlled-document updates are completed.
