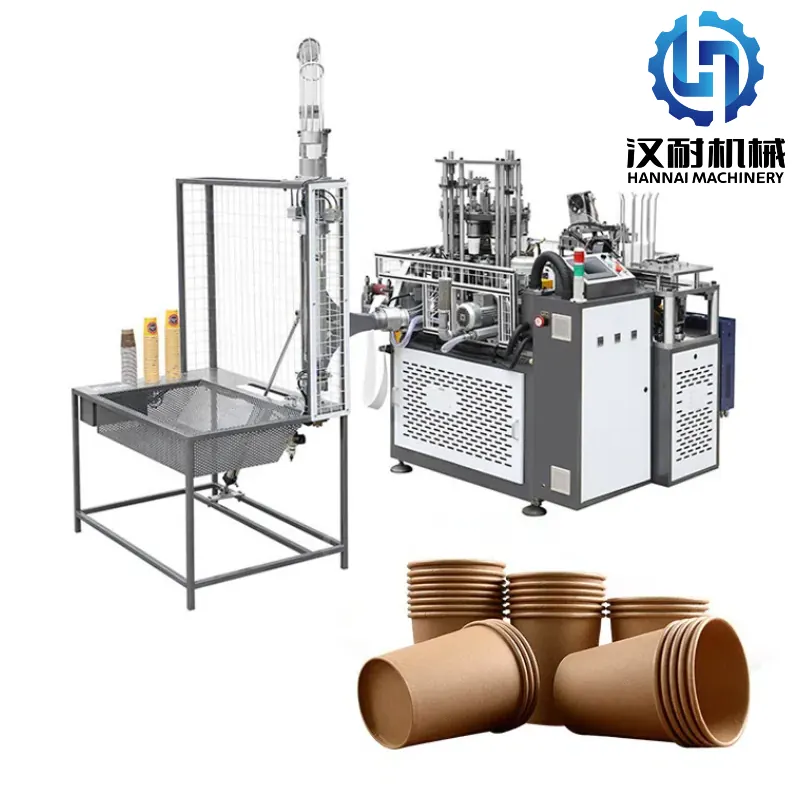

Paper cup machine VFD and motor drive troubleshooting should distinguish an electrical supply problem, drive command problem, motor problem and excessive mechanical load before any parameter is changed. A drive trip is often a protective response to another condition. Replacing the variable-frequency drive or increasing limits without evidence can preserve the real fault and expose the transmission to greater damage.
Identify the driven function and actual symptom
Use the machine drawings and labels to determine which motor and drive serve the affected function. Depending on the delivered configuration, a motor may support the main transmission, fan feeding, pumps, extraction, conveyors or another auxiliary movement. Do not infer its function from physical proximity alone.
Record whether the motor will not start, starts in the wrong sequence, accelerates poorly, stops under load, runs at an unexpected speed, becomes unusually hot or produces a named drive alarm. Include the cup format, operating mode, recent maintenance and the exact point in the cycle.
Create a drive fault evidence table
| Diagnostic layer | Evidence to record | Key question |
|---|---|---|
| Incoming supply | Approved voltage and phase evidence at the time of fault | Was the drive supplied within the delivered requirements? |
| Run command | HMI state, PLC output and drive command indication | Was the drive actually asked to run? |
| Drive status | Exact alarm, history, frequency or speed indication and state | Which protection or inhibit acted first? |
| Motor circuit | Connection condition, motor label, odor, heat and qualified test results | Is the motor circuit continuous and correctly connected? |
| Mechanical load | Transmission condition, obstruction, lubrication and free-path evidence | Is abnormal resistance causing the electrical symptom? |
| Configuration | Parameter backup, motor data, replacement and change history | Does the installed setup match the approved reference? |
| Release | Staged run, current trend where approved and accepted cups | Has the full machine function recovered? |
Preserve the first trip information
Photograph the complete drive display and HMI message before resetting. Record the first code, subsequent alarms, commanded operating state, duration since startup and whether the fault occurred during acceleration, steady running, a jam, deceleration or restart. The first trip generally carries more diagnostic value than the alarms generated after the machine stops.
Do not repeatedly reset a trip or bypass its protective function. If the fault involves smoke, burning odor, damaged insulation, abnormal heat or repeated overcurrent protection, isolate the machine and involve qualified personnel before further testing.
Check supply quality and control power
An unstable or imbalanced incoming supply, loose power connection or interruption to control power can create trips that resemble a defective drive. Qualified electrical personnel should compare measurements with the delivered electrical requirements and capture the condition when the fault occurs, not only after the machine is idle.
The power quality and voltage imbalance guide explains how to organize incoming supply evidence. Cabinet inspection should follow the electrical control cabinet guide, including isolation, stored-energy and qualified-personnel boundaries.
Confirm the command path before testing the motor
A motor that does not run may never have received a valid command. Confirm the machine mode, safety and process permissives, PLC output, drive run indication and speed reference using approved diagnostics. A stopped drive with no command requires sequence diagnosis; a drive showing a command but no output requires a different branch.
Do not force a PLC output or bridge an interlock. A missing command can be the correct response to an open guard, incomplete reference, missing material condition or downstream stop.
Separate the drive, motor and transmission
The drive converts the supplied power according to its command and parameters; the motor converts electrical output into mechanical torque; the transmission carries that motion to the station. Evidence should show where the expected result stops. Qualified personnel can compare command, drive output status and approved electrical measurements. Mechanical staff can inspect coupling marks, belts, chains, bearings, shafts and evidence of contact under lockout.
The chain, cam and drive timing guide provides the mechanical companion check. A tight bearing, contaminated slide or jam can cause a legitimate overload trip even when the VFD and motor are healthy.
Inspect cooling, contamination and connection condition
Blocked ventilation, accumulated dust, high cabinet temperature and loose terminations can shorten component life or trigger intermittent faults. Inspect filters, fans, clearances and visible connection condition according to the supplier’s maintenance instructions. Never use compressed air in a way that drives contamination deeper into electrical equipment.
Motor cables that flex, rub or approach a heat source deserve careful visual review. Internal tests, terminal tightening and energized measurements are restricted to qualified personnel using the correct isolation and verification procedure.
Protect parameters and motor data
Preserve the approved drive parameter file and motor nameplate record before any authorized change. Motor data, acceleration profile, control method, minimum and maximum references, protection settings and communication parameters must match the delivered application. Copying values from another machine can create wrong direction, inadequate protection or unstable control.
Do not extend acceleration, raise current limits or disable protection simply to make the alarm disappear. Parameter changes require an engineering reason, approval, before-and-after record and rollback plan.
Use a staged recovery test
After the verified electrical or mechanical correction, restore guards and covers, remove tools and confirm connections. Follow the approved reset and restart sequence. Observe the relevant motor first in the permitted manual or low-risk test condition, then through staged production conditions while monitoring the original symptom.
Release requires more than a running motor. Verify timing, feeding, sealing, transfer and cup quality over repeated cycles. Include lubrication condition in the investigation using the paper cup machine lubrication plan, because friction and drive load are often connected.
Frequently asked questions
Does an overcurrent alarm mean the VFD is defective?
No. Supply disturbance, shorted wiring, motor problems, excessive acceleration demand, mechanical binding or a jam may all produce protective current trips. Test the complete chain.
Can a higher current limit keep production running?
Changing a protection limit without approved engineering evidence is unsafe. It may hide abnormal load and increase damage to the motor, drive or transmission.
Why does the motor run normally when the machine is empty but trip during production?
The material and forming sequence add load. Compare mechanical resistance, alignment, lubrication, timing and product contact at the exact event where the trip occurs.
When should the machine supplier or drive specialist be contacted?
Escalate before protected parameter changes, drive or motor replacement, insulation testing, unfamiliar alarms or work involving the energized cabinet and stored electrical energy.
