950 Roll Die Cutting Machine
A roll creasing and die cutting machine for paper cup blanks, food box blanks and wider paper packaging material projects.

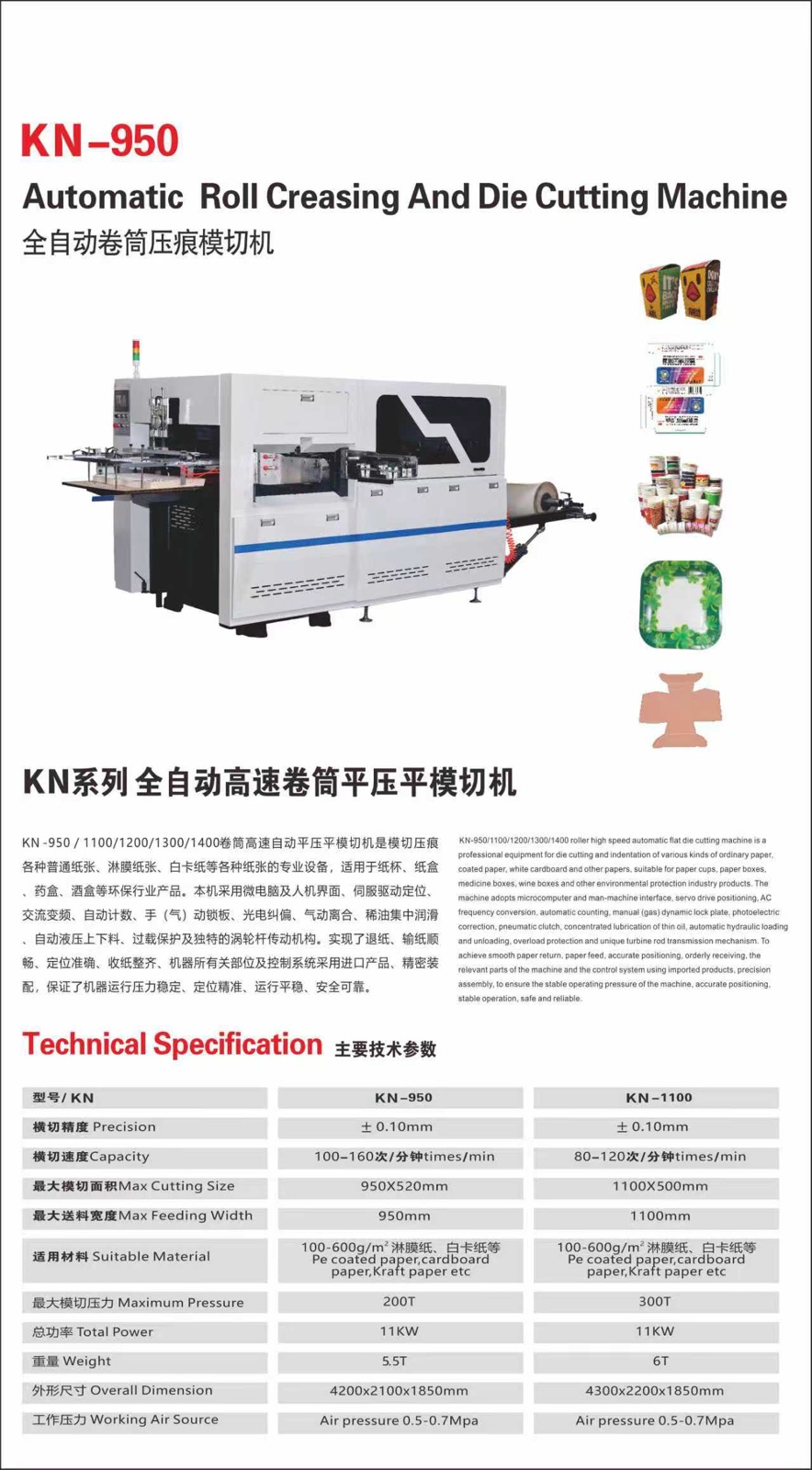

Key Specifications
| Model | KN-950 roll creasing and die cutting machine |
|---|---|
| Precision | +/-0.10 mm |
| Capacity | 100-160 times/min |
| Max cutting size | 950 x 520 mm |
| Max feeding width | 950 mm |
| Suitable material | 100-600 g/m2 PE coated paper, cardboard paper, kraft paper etc. |
| Maximum pressure | 200T |
| Total power | 11 kW |
| Working air source | 0.5-0.7 Mpa |
| Weight | 5.5T |
| Overall dimension | 4200 x 2100 x 1850 mm |
What Buyers Usually Confirm

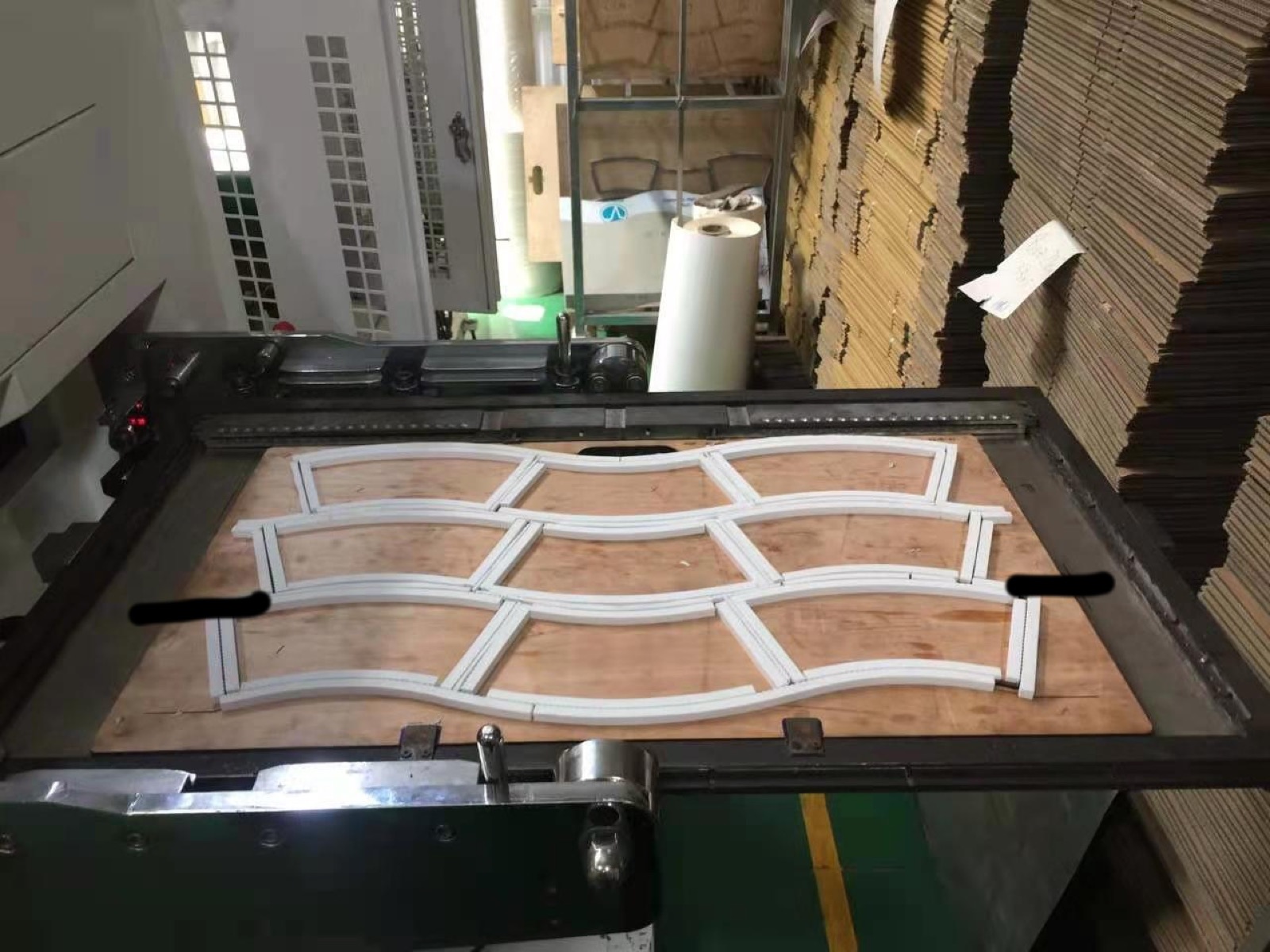

Machine Details & Project View
Real product photos help buyers understand the equipment structure before sending detailed requirements.
Suitable Buyer Projects
Questions Before Quotation
The KN-950 specification shows max feeding width of 950 mm.
The reference specification lists 100-600 g/m2 PE coated paper, cardboard paper and kraft paper. Final suitability should be confirmed by sample.
Send material, GSM, roll width, cutting size, output target, voltage and destination country.
Yes. Share your blank drawing and roll width, and we can help recommend the right configuration.
Compare Related Equipment & Guides
Continue from this page to compare machines, understand the production line and prepare a clearer inquiry for quotation.

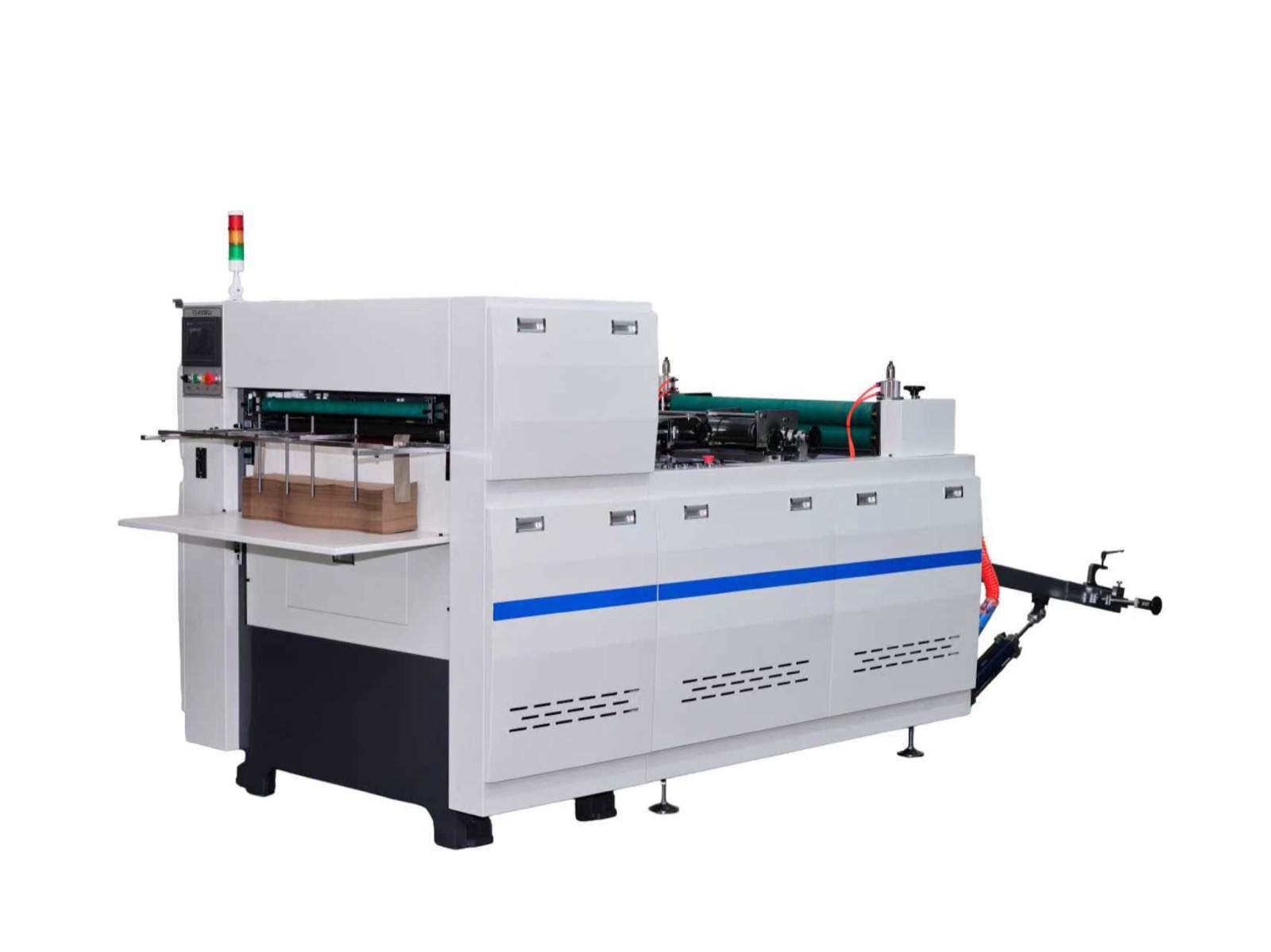

850 Roll Die Cutting Machine
Roll-fed die cutting support for paper cup blanks and packaging blanks.
Paper Cup Blank Cutting Machine Guide
Understand roll die cutting, paper cup fan blanks and production workflow matching.
850 vs 950 Roll Die Cutting Machine Guide
Compare material width, blank layout, cutting capacity and buyer information before choosing a roll die cutting model.
Paper Cup Digital Printing Machine
Digital printing support for custom cups, cup fan designs and branded food packaging.
Paper Cup Manufacturing Process Guide
Understand the practical workflow from paper material and cup blanks to forming, inspection and finished-cup packing.
Before quotation, please prepare these details
- Cup size or sample photo
- Target production speed or daily output
- Paper material and GSM
- Factory voltage and destination country
- Whether you need supporting machines such as die cutting or packing equipment
