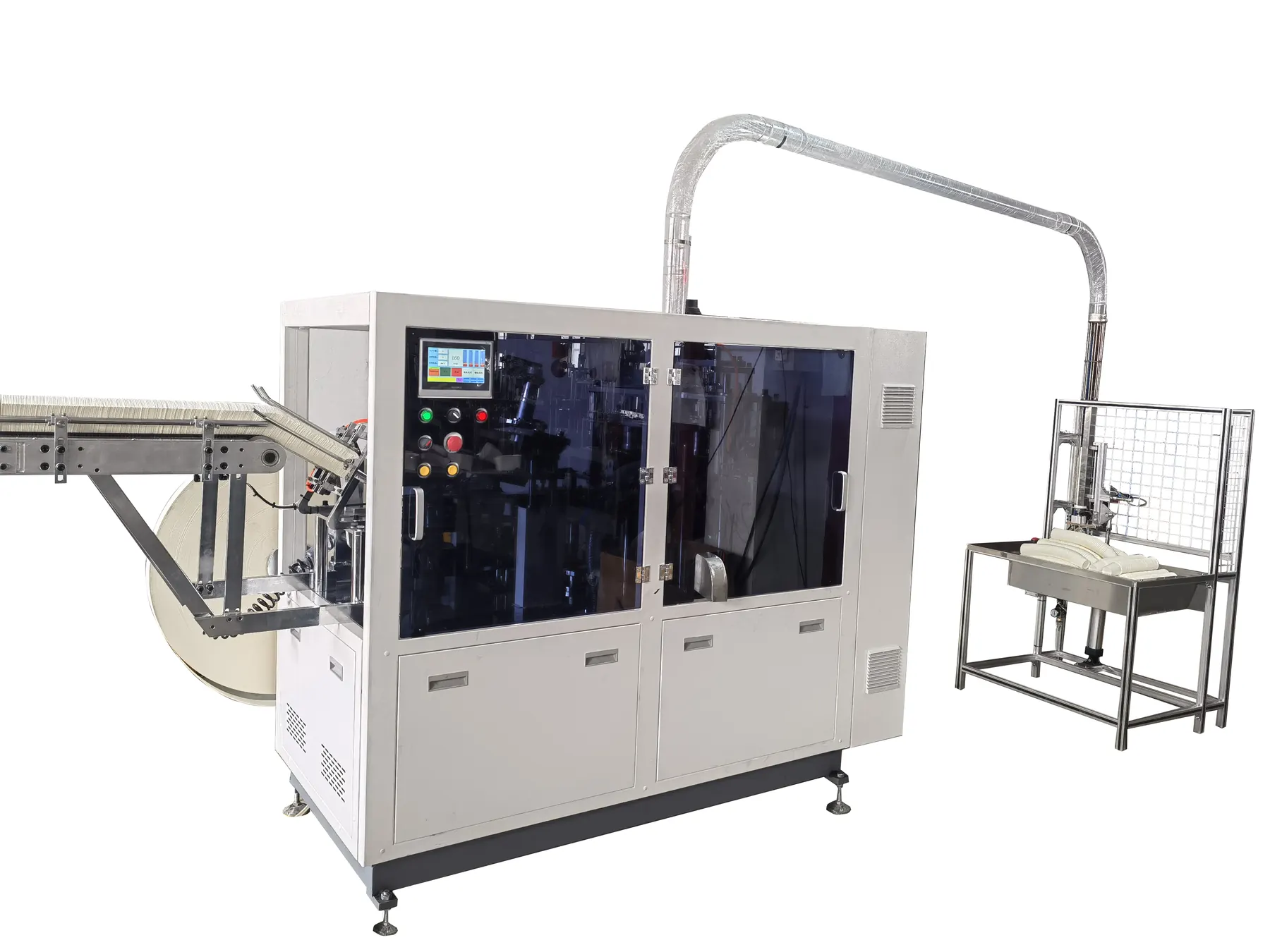

Paper cup capacity and fill-line verification controls cup identity, measurement method, liquid condition, reading position, sampling and release evidence.
Define which capacity the buyer actually needs
Nominal serving volume, a marked fill line, a practical operating fill and brimful capacity are different concepts. If the drawing, label and test instruction do not identify the same definition, two inspectors can obtain different results from an otherwise unchanged cup.
Begin by naming the capacity under review, the reference point on the cup and the intended use. Do not assume that a market name such as 8 oz or 12 oz completely defines the cup geometry or required liquid volume.
Build a capacity verification table
| Control point | Evidence to define | Decision question |
|---|---|---|
| Product identity | Cup SKU, drawing revision, mould, material and batch | Is the approved cup being tested? |
| Capacity type | Nominal, marked fill, practical fill or brimful definition | Are all parties using the same term? |
| Reference point | Fill mark, distance below rim or another controlled location | Can the reading position be repeated? |
| Test medium | Approved liquid, temperature and conditioning | Does the method match the product requirement? |
| Measurement | Volumetric tool or mass-to-volume method and units | Is the equipment suitable and controlled? |
| Sample result | Actual readings, spills, deformation and abnormal evidence | Does the sample meet the approved boundary? |
| Traceability | Machine, mould, batch, time, inspector and release status | Can the production window be identified? |
Start from the controlled drawing and cup sample
Confirm the top diameter, bottom diameter, height, taper, rim and any marked fill feature on the current drawing. Link the tested cup to the mould, paper, coating, fan blank and bottom-paper batches used for production.
The paper cup dimensional consistency guide explains why geometry must be measured with defined tools and locations. Capacity movement can be a sign of dimensional movement, but it should not be used to guess which dimension changed.
Set one repeatable fill reference
The instruction should show exactly where liquid stops: at a printed line, a defined distance below the rim, a gauge reference or the agreed brimful condition. Define how the cup is supported and how the liquid surface is read.
Place the cup on the specified level surface and avoid tilting it to reach a preferred result. When the liquid surface curves at the wall, use the reading convention stated in the approved method rather than changing the viewing position between samples.
Control liquid, temperature and measuring equipment
Use the approved test liquid and temperature condition. Confirm the volumetric vessel, balance or dispensing system is suitable for the required range and has the verification or calibration status required by the factory system.
If a mass-to-volume calculation is used, document the approved density basis and conditions. Do not apply one conversion to every liquid or temperature. Record the actual method, unit and equipment identity with the result.
Prevent bubbles, spills and handling errors
Fill at the controlled rate and position so splashing, foam or trapped air does not change the reading. Inspect the cup for leakage, wetting, deformation or an unstable base before and during the test.
A leaking or visibly deformed cup should enter the relevant defect process rather than being reported only as a capacity failure. Preserve the sample and test sequence when the cause requires investigation.
Sample starts, changes and multiple mould positions
Approve first-good cups and continue according to the risk-based sampling plan. Add checks after mould work, cup-dimension changes, paper or coating changes, forming adjustments, extended stops or restarts.
Identify the sample position or collection sequence when the production configuration can create location-related variation. The quality inspection and sampling guide helps define a traceable production window.
Compare actual readings, not only pass or fail
Record each reading, capacity definition, unit, test condition and sample identity. Actual values make gradual drift visible and allow a new batch or mould intervention to be compared with the approved baseline.
A pass/fail mark alone can hide movement near the acceptance boundary. Keep the measurement record connected to the pre-production sample approval so the drawing, sample and test method remain aligned.
Investigate capacity drift systematically
When readings move, first compare cup identity, test method, equipment, support, fill reference and liquid condition. Then review dimensions, mould condition, material batches and forming settings. Avoid changing several variables before confirming the measurement system.
Document any new cup geometry, mould reference or test method through the production change control process. Similar nominal volumes do not authorize unrecorded tooling substitutions.
Frequently asked questions
Is nominal cup volume the same as brimful capacity?
Not necessarily. The project must define which capacity is stated and where the liquid reference is located.
Can cup capacity be calculated from one diameter?
No. Cup geometry includes top and bottom diameters, height, taper, rim and other features. Use the controlled drawing and approved measurement method.
Does a capacity failure always mean the mould is wrong?
No. Cup identity, measuring equipment, fill reference, liquid condition, deformation and operator method can also affect the result.
When should capacity approval be repeated?
Review changes to the drawing, mould, material, forming condition, marked fill feature or approved test method and document the release decision.
